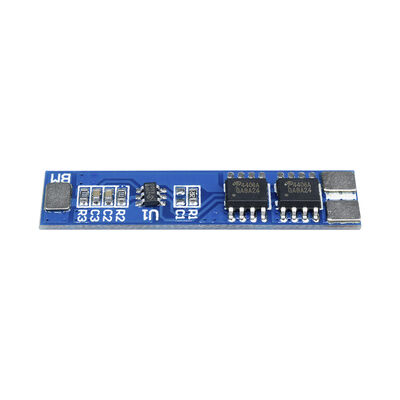

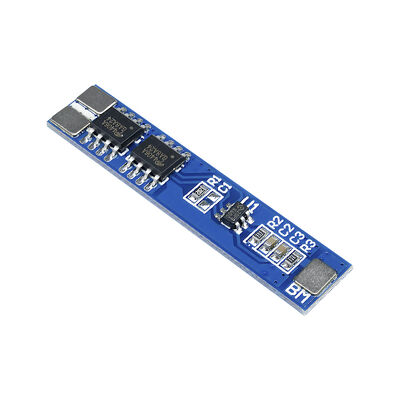

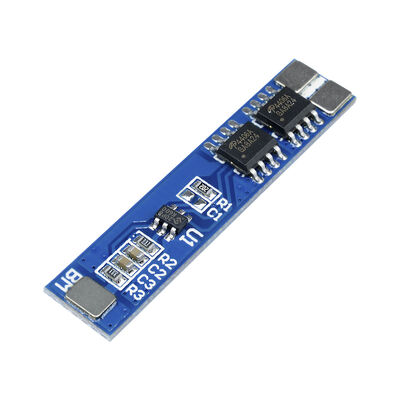

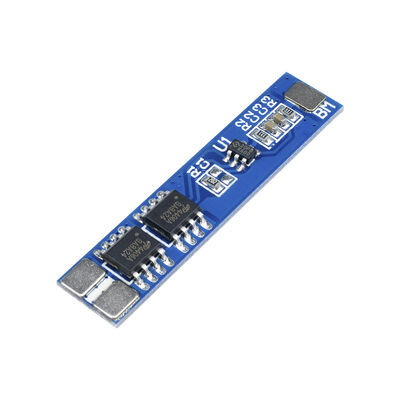

2S 5A BMS PCM For Li-ion Lipo Battery Cell Pack 7.4V 8.4V 18650 BMS 2S 5A Li-ion Battery Protection Board

Large Image : 2S 5A BMS PCM For Li-ion Lipo Battery Cell Pack 7.4V 8.4V 18650 BMS 2S 5A Li-ion Battery Protection Board

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Creatall
Model Number:	2S 5A

Payment & Shipping Terms:

Minimum Order Quantity:	300
Price:	$0.31-0.39

Contact Now

2S 5A BMS PCM For Li-ion Lipo Battery Cell Pack 7.4V 8.4V 18650 BMS 2S 5A Li-ion Battery Protection Board

Description

Type:	LOGIC ICS	Copper Thickness:	2 OZ
Above Charge Voltage:	4.25-4.35v ± 05 V	Beyond Dishcarge Voltage:	2.5-3.0v ± 05 V
Continuous DC Max:	5A	Max Peak Current:	7A
Operating Temperature:	-40 --- + 50	Storage Temperature:	-40- + 80
Small Current:	Less Than 5uA	Resistance:	Less Than 300mΩ
Size:	38 * 8 * 2mm

Products Description

Features:
1) high-precision voltage detection circuit;
2) terminal device of the charger using high voltage;
3) Built-in three-stage overcurrent detection circuit (overcurrent 1, overcurrent protection 2, or short-circuit current);
4) MOS transistor can control charge and discharge;
5) Low standby power consumption.

Parameter:
Above charge voltage: 4.25-4.35v ± 05 v
Beyond dishcarge voltage: 2.5-3.0v ± 05 v
Continuous DC Max: 5A
Max peak current: 7A
Operating temperature: -40 --- + 50
Storage temperature: -40- + 80
Small current: less than 5uA
Life cycle: more than 50000 hours
Resistance: less than 300mΩ
Short cut protection: Protective, charge able to repair
Size: 38 * 8 * 2mm
2 S BMS Cnnection instruction:
B + positive battery connect;
B-Negative battery connection;
MB Connect the point between battery1 & battery 2;
P + Positive charge / discharge;
P-Negative charge / discharge.

Package Includes:
1PC*2S 5A Li-ion Lithium Battery 18650 Charger Protection Board Pad Module 7.4V 8.4V
