Customizable 6S 22V 18650 Lithium Battery PCB Protection Board 6A 12A Battery BMS 18650 Lithium Battery Customizable Protection

Large Image : Customizable 6S 22V 18650 Lithium Battery PCB Protection Board 6A 12A Battery BMS 18650 Lithium Battery Customizable Protection

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	creatall
Model Number:	6S-6A/12A

Payment & Shipping Terms:

Minimum Order Quantity:	100

Contact Now

Customizable 6S 22V 18650 Lithium Battery PCB Protection Board 6A 12A Battery BMS 18650 Lithium Battery Customizable Protection

Description

Base Material:	PCB	Price:	Two Specifications, Please Contact Us For Specific Price

Products Description

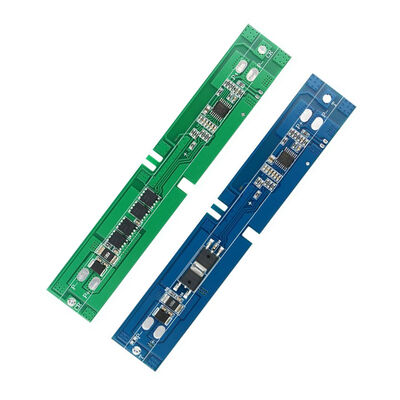

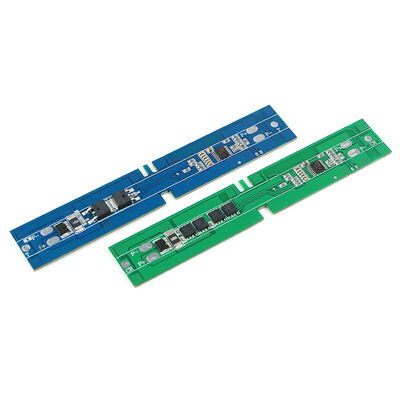

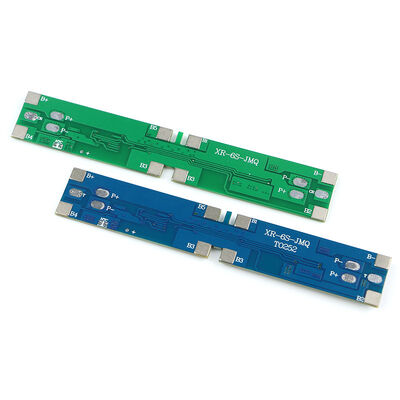

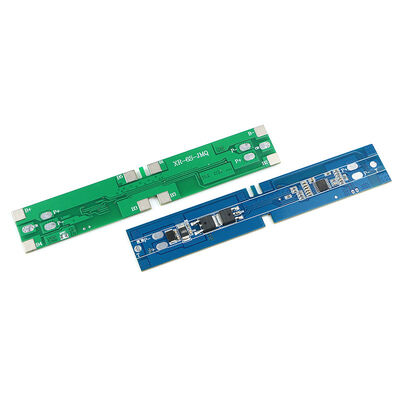

6S 22V 18650 Lithium Battery PCB Protection Board 6A 12A Fascia Gun Battery Protection Board

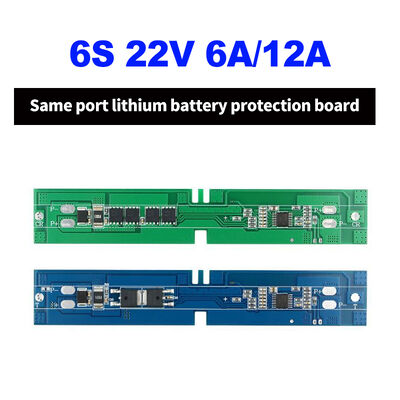

Type：Ternary/6series/22V 6A 12A

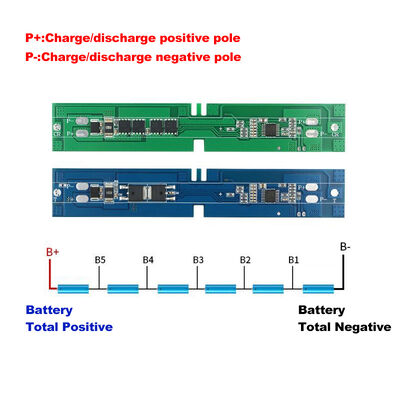

Wiring mode: same port

discharger：

Overdischarge protection voltage:2.7V ± 0.08V Overdischarge recovery voltage:3.0V ± 0.08V Overdischarge delay:0.5S~1.5S Continuous working current:Two versions, 6A/12A

Instantaneous protection current:

6A version=25A 12A version=33A

Over-current recovery conditions: charging recovery or disconnecting the load Short circuit recovery conditions: charging recovery or disconnecting the load

Charge: Single battery overcharge voltage:

Overcharge protection voltage:4.25V ± 0.025V Overcharge recovery voltage:4.15V ± 0.025V

Overdischarge delay:0.5S~1.5S

Continuous charging current:Two versions, 6A/12A

Charger Voltage:25V(Recommended)

Two activation methods for first PACK:

a、Short circuit the B - and P-wires once is sufficient b、Or it can be activated by charging

Working power consumption: ≤40uA Conduction internal resistance of the main circuit: ≤15mΩ

Temperature range: -40~80°C

power failure protection：yes

size:120*20*3.5mm
