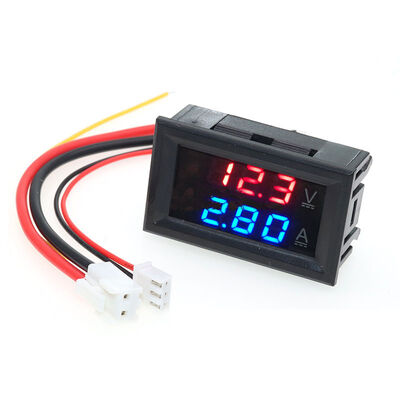

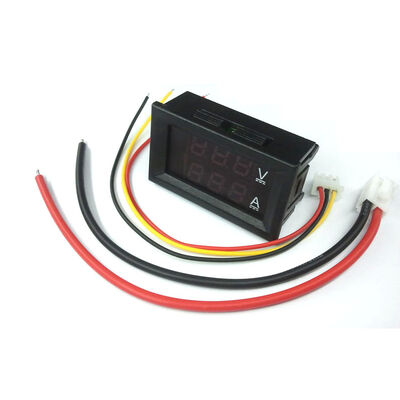

Mini Digital Panel Meter Tester 100V 10A Dual LED & LCD Display Volt & Current Voltage Detector for DC

Large Image : Mini Digital Panel Meter Tester 100V 10A Dual LED & LCD Display Volt & Current Voltage Detector for DC

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	creatall
Model Number:	mini voltmeter

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	$0.99-1.50

Contact Now

Mini Digital Panel Meter Tester 100V 10A Dual LED & LCD Display Volt & Current Voltage Detector for DC

Description

Functional Application:	Mini Voltmeter	Mounting Type:	Standard
Condition:	New	Type:	Drive IC
Best Price:	Please Contact Us

Products Description

DC0-100V 10A LED Digital Voltmeter Ammeter Car Motocycle Voltage Current Meter Volt Detector Tester Monitor Panel

Specifications:

Working voltage of Meter itself:DC 4 - 30V(The maximum input voltage can not exceed 30V. Otherwise the meter will be burned)
Working current of Meter itself:≤20mA
Voltage Measuring range: DC 0 - 100V
Current Measuring range: DC 0 - 10A
Voltage resolution (V): 0.1V
Current resolution (A): 0.01A
Measure accuracy: 1% (± 1 digit)
Display: 0.28" digital tube, Two color blue and red
Refresh rate: about 300mS / times
Dimensions:48mm*29mm*26mm
Operation Temp: -10°-+65°

Package Include:
1x DC 100V 10A Voltmeter & Ammeter

Basic operation: Check the metter

Wiring as shown below, the meter displays the voltage, the current is 000, the product is qualified

Common power supply Test 4~30V loop wiring

The thick red wire is connected to the negative pole of the load; the thin black wire is not connected to prevent short circuit.

Independent power supply to measure 0~100V loop

The thin red and thin black wires cannot exceed 30V。

Measure the wiring method of solar charging
