New 0.56\" Inch Digital LED Voltmeter AC 30-500V Panel Meter Tester with Red Display 2 Wire Tester 110V 220V 380V 22mm Mounting

New 0.56\" Inch Digital LED Voltmeter AC 30-500V Panel Meter Tester with Red Display 2 Wire Tester 110V 220V 380V 22mm Mounting
New 0.56\" Inch Digital LED Voltmeter AC 30-500V Panel Meter Tester with Red Display 2 Wire Tester 110V 220V 380V 22mm Mounting New 0.56\" Inch Digital LED Voltmeter AC 30-500V Panel Meter Tester with Red Display 2 Wire Tester 110V 220V 380V 22mm Mounting New 0.56\" Inch Digital LED Voltmeter AC 30-500V Panel Meter Tester with Red Display 2 Wire Tester 110V 220V 380V 22mm Mounting New 0.56\" Inch Digital LED Voltmeter AC 30-500V Panel Meter Tester with Red Display 2 Wire Tester 110V 220V 380V 22mm Mounting New 0.56\" Inch Digital LED Voltmeter AC 30-500V Panel Meter Tester with Red Display 2 Wire Tester 110V 220V 380V 22mm Mounting New 0.56\" Inch Digital LED Voltmeter AC 30-500V Panel Meter Tester with Red Display 2 Wire Tester 110V 220V 380V 22mm Mounting

Large Image :  New 0.56\" Inch Digital LED Voltmeter AC 30-500V Panel Meter Tester with Red Display 2 Wire Tester 110V 220V 380V 22mm Mounting

Product Details:
Place of Origin: Guangdong, China
Brand Name: creatall
Model Number: lm2596 step-down schaltregler
Payment & Shipping Terms:
Minimum Order Quantity: 200
Price: $0.50-0.68
Contact Now

New 0.56\" Inch Digital LED Voltmeter AC 30-500V Panel Meter Tester with Red Display 2 Wire Tester 110V 220V 380V 22mm Mounting

Description
Functional Application: Voltmeter Mounting Type: Standard
Wiress Numbers: 2 Wires Installation Size: 46 X 27mm
Wire Length: 20cm Minimum Measure Input: DC 30V
Display Color: Red Other Option Color: Green Blue
Maximum Measure Input: DC 500V Reverse Polarity Protection: Yes
Display Size: 0.56" Inch LED Digital Tube Refresh Rate: 200mS / Time

Products Description

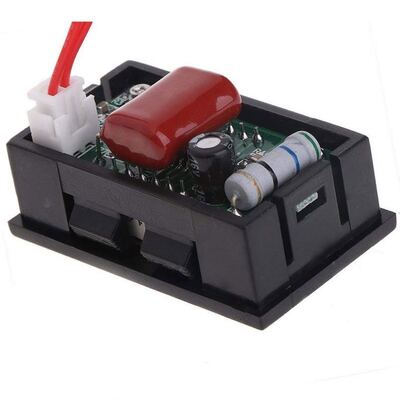

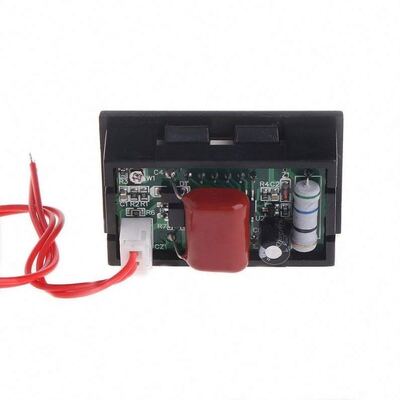

New AC 30-500V Voltmeter 0.56" Inch LED Digital Voltage Panel Meter Volt Tester 2 Wires Red Display Powered by 110V 220V 380V


1. Operating voltage: no need to connect to any power supply, two-wire system 2. The two-wire voltage meter design, the wiring is simple, easy to install 3. When there is a slight error, you can calibrate it through the circuit board, "fine-tuning" potentiometer for calibration Specifications: 1. Measuring range: AC30V-500V 2. Power supply range No additional power supply needed, direct use of the measured voltage as a power supply, range: AC30V-500V 3. Maximum input AC500V. Note: Input voltage higher than 500V may be permanently damaged! 4. Allowable error: 1%(+/-digit); 5. Input impedance> 1M ohms 6. Refresh speed: About 200mS / time 7. Display mode: 3 digits " 0.56 " LED digital tube 8. Display color: Red Option color: if you need blue or green color, please contact our sales manager 9. Lead length: about: 20cm 10. Outside dimensions: about: 48 x 29 x 22 mm / 1.89 x 1.17 x 0.87 in Hole Size: about 46 x 27 mm / 1.81 x 1.06 in 11. Net weight: about 28g 12. Operating temperature: -10°C~65°C (14°F-140°F) Package Includes: 1 x 0.56" LED Digital Voltmeter
New 0.56\" Inch Digital LED Voltmeter AC 30-500V Panel Meter Tester with Red Display 2 Wire Tester 110V 220V 380V 22mm Mounting
New 0.56\" Inch Digital LED Voltmeter AC 30-500V Panel Meter Tester with Red Display 2 Wire Tester 110V 220V 380V 22mm Mounting
New 0.56\" Inch Digital LED Voltmeter AC 30-500V Panel Meter Tester with Red Display 2 Wire Tester 110V 220V 380V 22mm Mounting
Contact Us
New 0.56\" Inch Digital LED Voltmeter AC 30-500V Panel Meter Tester with Red Display 2 Wire Tester 110V 220V 380V 22mm Mounting
Contact us
Wechat：
zq13827494627
Mobile：
+86-13827494627
Skype：
alvacheng1
E-mail：
leo@creatall.com
Company Profile
New 0.56\" Inch Digital LED Voltmeter AC 30-500V Panel Meter Tester with Red Display 2 Wire Tester 110V 220V 380V 22mm Mounting
Certificates & Production Processes
New 0.56\" Inch Digital LED Voltmeter AC 30-500V Panel Meter Tester with Red Display 2 Wire Tester 110V 220V 380V 22mm Mounting
New 0.56\" Inch Digital LED Voltmeter AC 30-500V Panel Meter Tester with Red Display 2 Wire Tester 110V 220V 380V 22mm Mounting
Packing & Delivery
1. Normal packaging.
2. Export carton.
3. Custom packing.
4. All orders are will be shipped within 3-25 days after customers confirmed payment.
New 0.56\" Inch Digital LED Voltmeter AC 30-500V Panel Meter Tester with Red Display 2 Wire Tester 110V 220V 380V 22mm Mounting
New 0.56\" Inch Digital LED Voltmeter AC 30-500V Panel Meter Tester with Red Display 2 Wire Tester 110V 220V 380V 22mm Mounting
New 0.56\" Inch Digital LED Voltmeter AC 30-500V Panel Meter Tester with Red Display 2 Wire Tester 110V 220V 380V 22mm Mounting
New 0.56\" Inch Digital LED Voltmeter AC 30-500V Panel Meter Tester with Red Display 2 Wire Tester 110V 220V 380V 22mm Mounting
Payment&Shipping
PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.
New 0.56\" Inch Digital LED Voltmeter AC 30-500V Panel Meter Tester with Red Display 2 Wire Tester 110V 220V 380V 22mm Mounting
Customer Reviews
This is a part of good feedback from our customer, all is 5 star. It is prove that we are excellent supplier and also prove we own
high quality products and professional services.
New 0.56\" Inch Digital LED Voltmeter AC 30-500V Panel Meter Tester with Red Display 2 Wire Tester 110V 220V 380V 22mm Mounting
FAQ
Q: What is the minimum order quantity for your products? A: If you need a small order, please contact us Q: How long is your delivery time? A: The product will be sent within 3 days after payment is confirmed, and the delivery time is 3 to 6 days Q: Do you test or inspect all items before delivery? A: Yes, we tested and checked all items before shipment. Q. What is your warranty? A: 60 days after receiving the goods. Our products are 100% tested before being shipped. If the goods are defective, please notify us within 3 days after delivery. Any item must be returned as is to be eligible for a refund or payment. The buyer is responsible for all freight incurred. Q: How do I pay for the order? A: We accept wire transfer, Western Union, Pay Pal, , escrow (if you prefer other methods, please contact us)
