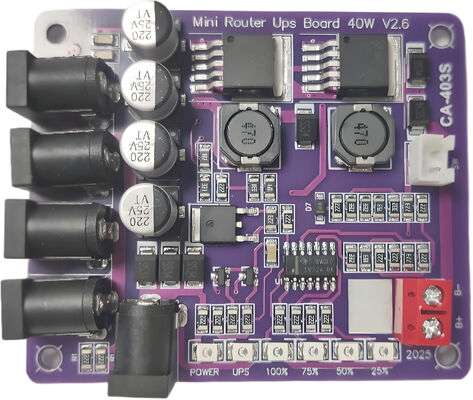

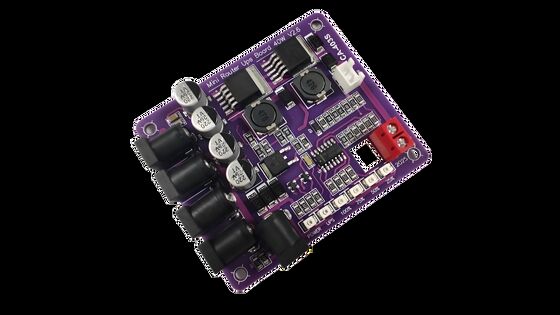

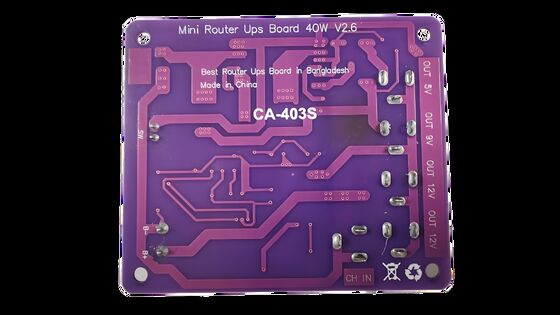

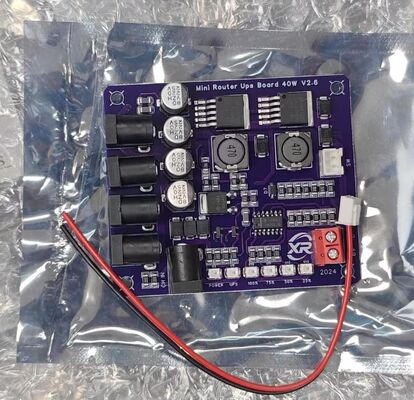

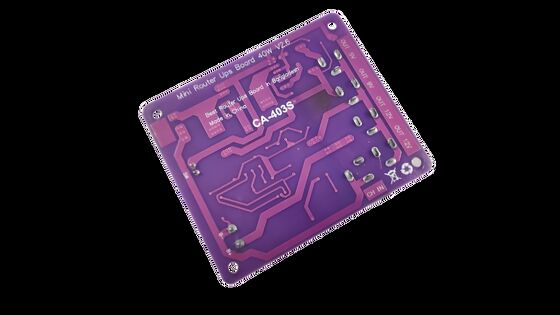

CA-403S Mini Router Uninterruptible Power Supply Board with 40W Output 11.1V Battery Input and Short Circuit Protection

CA-403S Mini Router Uninterruptible Power Supply Board with 40W Output 11.1V Battery Input and Short Circuit Protection
CA-403S Mini Router Uninterruptible Power Supply Board with 40W Output 11.1V Battery Input and Short Circuit Protection CA-403S Mini Router Uninterruptible Power Supply Board with 40W Output 11.1V Battery Input and Short Circuit Protection CA-403S Mini Router Uninterruptible Power Supply Board with 40W Output 11.1V Battery Input and Short Circuit Protection CA-403S Mini Router Uninterruptible Power Supply Board with 40W Output 11.1V Battery Input and Short Circuit Protection CA-403S Mini Router Uninterruptible Power Supply Board with 40W Output 11.1V Battery Input and Short Circuit Protection CA-403S Mini Router Uninterruptible Power Supply Board with 40W Output 11.1V Battery Input and Short Circuit Protection CA-403S Mini Router Uninterruptible Power Supply Board with 40W Output 11.1V Battery Input and Short Circuit Protection CA-403S Mini Router Uninterruptible Power Supply Board with 40W Output 11.1V Battery Input and Short Circuit Protection

Large Image :  CA-403S Mini Router Uninterruptible Power Supply Board with 40W Output 11.1V Battery Input and Short Circuit Protection

Product Details:
Place of Origin: China
Brand Name: creatall
Model Number: CA-403S
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: $2.68
Payment Terms: T/T
Contact Now

CA-403S Mini Router Uninterruptible Power Supply Board with 40W Output 11.1V Battery Input and Short Circuit Protection

Description
Highlight:

40W Output Uninterruptible Power Supply Board

,

11.1V Battery Input Battery Charging Board

,

Short Circuit Protection Mini Router Power Module

CA-403S Mini Router Uninterruptible Power Supply Board
Product Overview

40W 11.1V Battery Charging Board V2.6 - Advanced uninterruptible power supply solution for mini routers and networking equipment with comprehensive protection features.

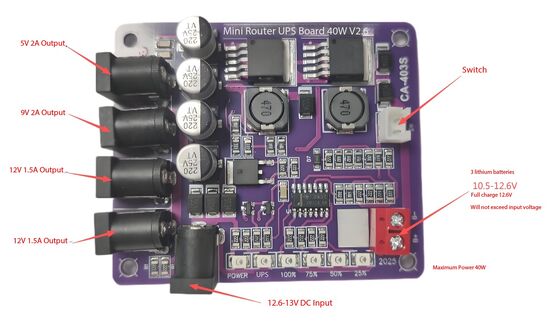

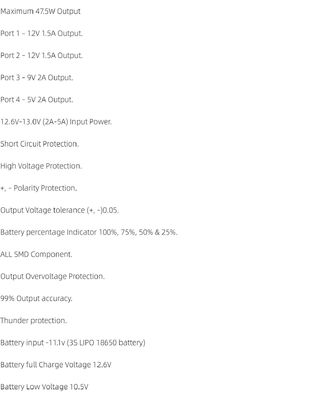

Power Output Specifications
Port Output Current
Port 1 12V 1.5A
Port 2 12V 1.5A
Port 3 9V 2A
Port 4 5V 2A
Maximum Total Output: 47.5W
Input Power Requirements

12.6V-13.0V Input Range
2A-5A Current Capacity

Battery Specifications

Battery Input: 11.1V (3S LIPO 18650)
Full Charge Voltage: 12.6V
Low Voltage Cutoff: 10.5V

Performance Metrics

Output Voltage Tolerance: ±0.05
Output Accuracy: 99%

Protection Features
  • Short Circuit Protection
  • High Voltage Protection
  • Polarity Protection (+,-)
  • Output Overvoltage Protection
  • Thunder Protection
Battery Status Indicators

Clear battery percentage display with four-level indication: 100%, 75%, 50%, and 25% capacity levels.

Construction Quality

Professional SMD component construction ensuring reliability, compact design, and optimal thermal performance.
