TDA7297 15W+15W Stereo Amplifier Board 12V DC Audio Module

Large Image : TDA7297 15W+15W Stereo Amplifier Board 12V DC Audio Module

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	creatall
Model Number:	TDA7297

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$1.74-1.82

Contact Now

TDA7297 15W+15W Stereo Amplifier Board 12V DC Audio Module

Description

Model Number:	TDA7297	Voltage Range:	DC 9-15V
Recommended Voltage:	12V	Output Power:	15W + 15W
Peak Power:	30W + 30W	Output Impedance:	4-8Ω
Dimensions:	50x50x42mm	Net Weight:	50.7g
PCB Thickness:	1.6mm	PCB Material:	FR-4 Fiberglass
Current Requirement:	2A Above	Amplifier Chip:	TDA7297
Channel Type:	Dual Channel	Mounting Type:	Soldering
Speaker Compatibility:	4-8Ω 10-50W
Highlight:	TDA7297 stereo amplifier board , 15W amplifier module 12V DC , audio amplifier board with warranty

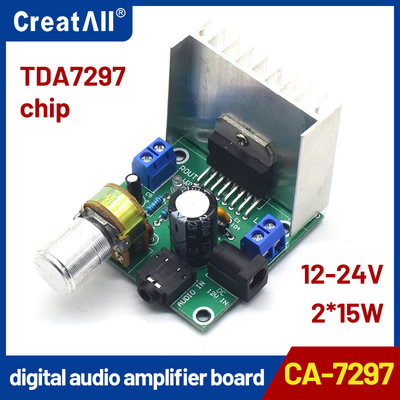

CA-7297 DIY Module 12-24V Digital Audio Power Amplifier Board

Stereo Dual Channel 2*15W for Electronic Components

Product Attributes

Attribute	Value
Functional Application	Audio
Mounting Type	Soldering

Product Description

Specifications

Model Number	TDA7297
Place of Origin	China, Guangdong
Brand Name	creatall
Functional Application	Audio
Mounting Type	Soldering

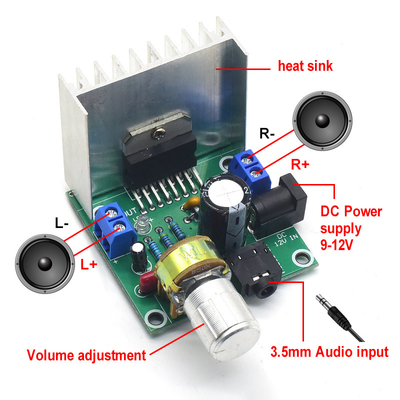

TDA7297 Power Amplifier Board with Terminal Block, 2.0 Dual channel 15W+15W. Can be connected to 4-8Ω 10-50W speakers. Compact size with powerful output.

Key Features

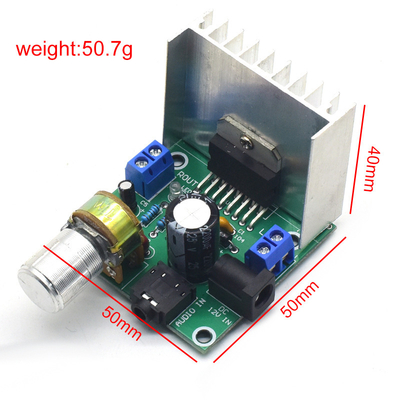

Dimensions: 50x50x42mm (LxWxH, without potentiometer handle)
Voltage: DC 9-15V (recommended 12V)
Current: 2A minimum
Power Output: 15W+15W
Output Impedance: 4-8Ω
Net Weight: 50.7g
No startup current impact sound
High fidelity with no static noise
Excellent sound quality with clear treble and powerful bass
Uses imported TDA7297 two-channel amplifier chip from STMicroelectronics

Technical Details

The amplifier board is designed according to official standard circuits, using 1.6mm thickness FR-4 fiberglass PCB with optimal component layout and wiring. For detailed TDA7297 parameters, visit ST official website.

Recommended Setup

For best performance, use a 12V 2A battery or 12V 30W transformer. Switching power supplies may introduce noise due to poor linearity. For high-quality audio, use lossless music formats (.ape, .flac, .wav).
