5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD

5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD
5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD 5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD 5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD 5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD 5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD 5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD

Large Image :  5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: CN¥169.59/pieces 10-99 pieces
Contact Now

5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD

Description
Type: HDMI Splitters Private Mold: NO
Place Of Origin: Guangdong, China Brand Name: Creatall
Highlight:

PS4 DVD Analog Audio Converter Extractor

,

3.5mm RCA Analog Audio Converter Extractor

,

5.1 Channel Sound Splitter Amplifier

HDMI to 3.5mm RCA Analog Audio Converter Extractor Decoder Amplifier for PS4 DVD 5.1 Channel Sound Splitter
Product Overview

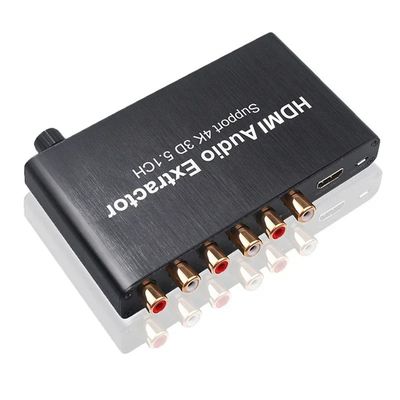

5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD 0

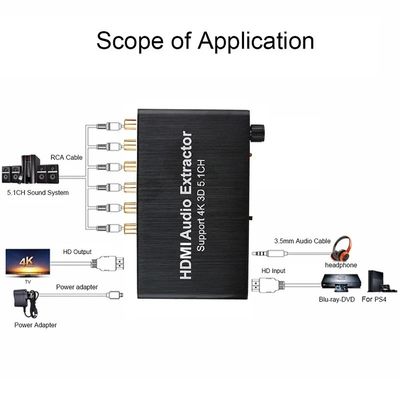

This 5.1CH HDMI Audio Extractor Decoder automatically converts HDMI input to 5.1 channel analog audio output, supporting Dolby AC-3/DTS decoding (including 5.1 RAW digital audio streaming). Ideal for home theaters, schools, concert halls, cinemas, and other public venues to experience the immersive effects of DTS or Dolby sound.
Important Notes:
  • Output sound quality depends on the input signal quality
  • Stereo input signals will only output through FR/FL channels
  • All 6 RCA outputs produce sound only with 5.1 channel input signals
  • For 5.1 channel output: Ensure your DVD contains 5.1 channels, set the button to 5.1ch, and configure the source device audio output format to "RAW"
Key Features
  • Built-in high-performance RTOS operating system and audio decoder chip supporting DTS/AC-3
  • Fast startup time of approximately 3 seconds
  • Input: HDMI | Output: HDMI; SW, CEN, SR, SL, FR, FL; 3.5mm Headphone Port
  • HDMI Input Resolution: Up to 3840x2160@30Hz; 4096x2160@30Hz
  • Three audio mode options: PASS/2.0CH/5.1CH
  • Automatically decodes AC-3/DTS (LPCM/PCM/RAW) input signals
  • High compatibility with network players, HDTV, Blu-ray DVD, DVD, PS3, Xbox 360, DM500S, DM800HD, etc.
  • Compact metal casing with anti-interference design
  • 6CH RCA/3.5mm headphone port output for convenient use
  • Supports 6-channel volume synchronous adjustment
Technical Specifications
HDMI VersionHDMI 1.4b
HDMI Resolution2160p@30Hz/1080p@50/60Hz/1080i/720p/1576i/480p/480i
Video Color Format24-bit/deep color 30bit, 36bit
Audio Output2CH/5.1CH Analog Audio
Max Bandwidth340MHz
Max Baud Rate10.2Gbps
Input/Output TMDS Signal0.5-1.5 Volts p-p (TTL)
Input/Output DDC Signal5 Volts p-p (TTL)
Input Cable Distance≤7m AWG26 standard cable HDMI
Output Cable Distance≤8m AWG26 standard cable HDMI
Supported Audio FormatsMP3, AC3, DTS, WAV, WMA, AAC, ALAC, FLAC, APE, OGG, M4A
Signal-to-Noise Ratio120dB
Stereo Isolation80dB (1KHz)
Channel Unbalance0dB
Sampling Rate32~192 KHz
Bit Rate16~24 Bit
Response Frequency20Hz~20KHz+/-0.7dB
THD20Hz~20KHz 0.25-0.065%
THD+N1KHz 0.15%
Package Contents
1 x Audio Decoder, 1 x USB Cable, 1 x User Manual
Product Images
5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD 1 5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD 2 5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD 3 5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD 4 5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD 5 5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD 6 5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD 7
Contact Information
WeChatzq13827494627
WhatsApp+86-13827494627
Skypealvacheng1
E-mailleo@creatall.com
Company Profile
5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD 8
Certificates & Production Processes
5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD 9 5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD 10 5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD 11
Packing & Delivery
  • Normal packaging
  • Export carton
  • Custom packing available
  • All orders shipped within 3-25 days after payment confirmation
5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD 12 5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD 13 5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD 14 5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD 15
Payment & Shipping
PAYMENT: Standard terms: 30% deposit in advance, 70% balance before shipment. Online trade assurance orders available. Additional payment methods: T/T, PayPal, Western Union.
SHIPPING: 100% strict inspection and testing before shipment. Replacement within one week for defective goods. One-year warranty included.
5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD 16
Customer Reviews
We consistently receive 5-star feedback from our customers, demonstrating our commitment to high-quality products and professional services.
5.1 Channel HDMI Audio Extractor with Dolby AC-3/DTS Support and 3840x2160@30Hz Resolution for PS4 DVD 17
Frequently Asked Questions
Q: What is the minimum order quantity for your products?
A: Please contact us for small order quantities.
Q: How long is your delivery time?
A: Products are shipped within 3 days after payment confirmation, with delivery taking 3-6 days.
Q: Do you test or inspect all items before delivery?
A: Yes, we thoroughly test and check all items before shipment.
Q: What is your warranty?
A: 60 days after receiving goods. All products are 100% tested before shipping. Report defects within 3 days of delivery for refund or replacement. Buyer responsible for return freight.
Q: How do I pay for the order?
A: We accept wire transfer, Western Union, PayPal, MoneyGram, escrow. Contact us for other payment methods.
