500W High Power Mono Amplifier Board with Toshiba Transistor for HIFI Audio Rear Stage

500W High Power Mono Amplifier Board with Toshiba Transistor for HIFI Audio Rear Stage
500W High Power Mono Amplifier Board with Toshiba Transistor for HIFI Audio Rear Stage 500W High Power Mono Amplifier Board with Toshiba Transistor for HIFI Audio Rear Stage 500W High Power Mono Amplifier Board with Toshiba Transistor for HIFI Audio Rear Stage 500W High Power Mono Amplifier Board with Toshiba Transistor for HIFI Audio Rear Stage 500W High Power Mono Amplifier Board with Toshiba Transistor for HIFI Audio Rear Stage 500W High Power Mono Amplifier Board with Toshiba Transistor for HIFI Audio Rear Stage

Large Image :  500W High Power Mono Amplifier Board with Toshiba Transistor for HIFI Audio Rear Stage

Product Details:
Place of Origin: Guangdong, China
Brand Name: Creatall
Model Number: CA-1005
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $33.95/pieces 10-99 pieces
Contact Now

500W High Power Mono Amplifier Board with Toshiba Transistor for HIFI Audio Rear Stage

Description
Private Mold: NO Type: Professional Amplifier
Channels: 2 (2.0)
Highlight:

HIFI Amplifier Board

,

500W Amplifier Board

Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board
Product Overview

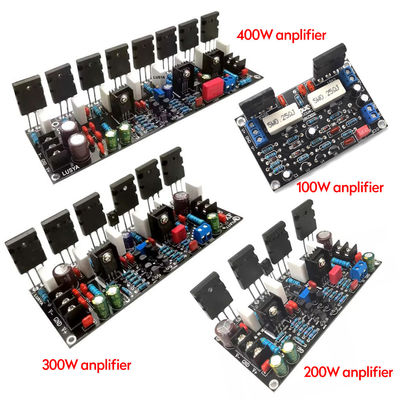

High-performance mono rear amplifier board featuring 2SC5200+2SA1943 power transistors, designed for professional audio applications with power output up to 500W.

500W High Power Mono Amplifier Board with Toshiba Transistor for HIFI Audio Rear Stage 0
100W Rear Mono Amplifier Board

Features:

  • Minimal switch noise with minimal speaker impact
  • Recommended to add speaker protection circuit
  • Low bottom noise and zero float
  • No debugging required after installation
  • Output zero drift voltage typically ≤50mV
  • High success rate for beginners

Important Notes:

  • 2SC5200 + 2SA1943 are refurbished parts in good condition
  • PCB color changed to black with same functionality
  • Operating voltage: Dual DC 10-45V (recommended dual DC 35V)
  • Rated output power: 100W (4 ohms, 35V)
  • Maximum output power: 150W (4 ohms, 45V)
  • Significant heat generation at maximum power
  • PCB size: 30×50×35mm
  • Pitch: 5.08mm
  • Hole spacing between power tubes: 47mm
500W High Power Mono Amplifier Board with Toshiba Transistor for HIFI Audio Rear Stage 1 500W High Power Mono Amplifier Board with Toshiba Transistor for HIFI Audio Rear Stage 2
Mono 200W High Power Amplifier Board

Technical Specifications:

  • Circuit design: A970/C2240 high-voltage audio tube double differential circuit
  • Voltage amplification: A1145/C2705
  • Medium-power tube: A1837/C4793
  • Output stage: A1943/C5200 high-power Toshiba tubes
  • Power supply range: DC ±20V-90V
  • Undistorted power: 200W
  • High power: 300W
  • Board size: 120×60×45mm
  • Capable of driving 15-inch speakers effortlessly

Usage Recommendation: Use voltage ≤90V, do not challenge voltage limits.

500W High Power Mono Amplifier Board with Toshiba Transistor for HIFI Audio Rear Stage 3 500W High Power Mono Amplifier Board with Toshiba Transistor for HIFI Audio Rear Stage 4 500W High Power Mono Amplifier Board with Toshiba Transistor for HIFI Audio Rear Stage 5
Mono 300W Amplifier Board with Speaker Protection

Enhanced Features:

  • Upgraded mono amplifier board with speaker protection
  • Circuit design: A970/C2240 high-voltage audio double differential circuit
  • Voltage amplification: A1145/C2705
  • Medium-power triode: A1837/C4793
  • Output stage: A1943/C5200 high-power Toshiba tubes
  • Power supply range: DC ±20V-90V
  • Undistorted power: 300W
  • Peak power: 450W
  • Board size: 150×75×55mm
  • Excellent sound quality with strong driving force
500W High Power Mono Amplifier Board with Toshiba Transistor for HIFI Audio Rear Stage 6
Upgraded 300W HIFI High Power Audio Amplifier

Technical Details:

  • Single channel rear amplifier board (requires 2 pieces for dual channels)
  • Circuit design: A970/C2240 high voltage audio pair dual differential circuit
  • Voltage amplification: A1145/C2705
  • Medium power pair: A1837/C4793
  • Output stage: A1943/C5200 high-power Toshiba pair
  • Power supply: DC ±20V-90V
  • Undistorted power: 300W
  • Maximum power: 450W
  • Board size: 145×60×45mm
500W High Power Mono Amplifier Board with Toshiba Transistor for HIFI Audio Rear Stage 7
Upgraded Mono 400W HIFI High Power Audio Amplifier

Performance Specifications:

  • Single channel rear amplifier board (requires 2 pieces for dual channels)
  • Advanced circuit design with optimized components
  • Power supply: DC ±20V-90V
  • Undistorted power: 400W
  • Maximum power: 600W
  • Board size: 195×60×45mm
  • Excellent driving capability for 15-inch speakers
500W High Power Mono Amplifier Board with Toshiba Transistor for HIFI Audio Rear Stage 8
Upgraded Mono 500W HIFI High Power Audio Amplifier

Premium Specifications:

  • Single channel rear amplifier board (requires 2 pieces for dual channels)
  • Circuit design: A970/C2240 high voltage audio pair dual differential circuit
  • Voltage amplification: A1145/C2705
  • Medium power pair: A1837/C4793
  • Output stage: A1943/C5200 high-power Toshiba pair
  • Power supply: DC ±20V-90V
  • Undistorted power: 500W
  • Maximum power: 750W
  • Board size: 245×60×45mm
  • Includes speaker protection relay

Package Includes: 1 piece 500W audio amplifier board with speaker protect relay
