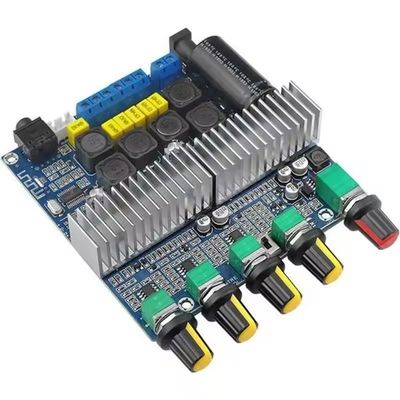

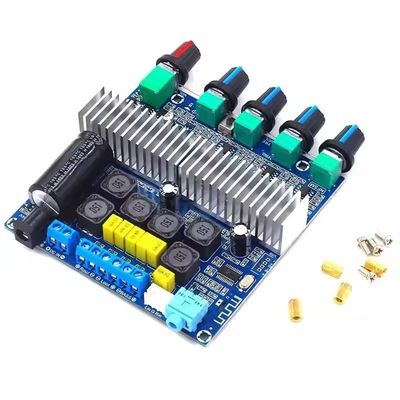

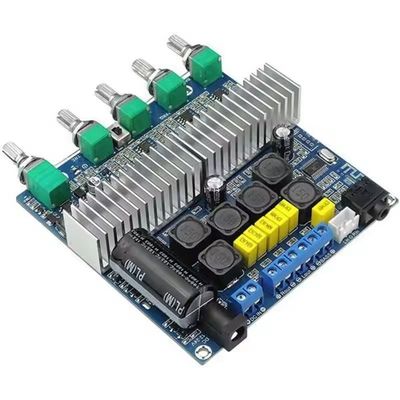

CA-3169B 2.1 Channel Audio Power Amplifier Board with TPA3116D2 Chip and 100W Max Output

CA-3169B 2.1 Channel Audio Power Amplifier Board with TPA3116D2 Chip and 100W Max Output
CA-3169B 2.1 Channel Audio Power Amplifier Board with TPA3116D2 Chip and 100W Max Output CA-3169B 2.1 Channel Audio Power Amplifier Board with TPA3116D2 Chip and 100W Max Output CA-3169B 2.1 Channel Audio Power Amplifier Board with TPA3116D2 Chip and 100W Max Output CA-3169B 2.1 Channel Audio Power Amplifier Board with TPA3116D2 Chip and 100W Max Output

Large Image :  CA-3169B 2.1 Channel Audio Power Amplifier Board with TPA3116D2 Chip and 100W Max Output

Product Details:
Place of Origin: China
Brand Name: Creatall
Certification: CE
Model Number: CA-3169B
Payment & Shipping Terms:
Minimum Order Quantity: 3pcs
Price: negotiable
Delivery Time: 3-7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Day
Contact Now

CA-3169B 2.1 Channel Audio Power Amplifier Board with TPA3116D2 Chip and 100W Max Output

Description
Application: Amplifier Audio Module Product Name: CA-3169B Digital Amp
Voltage Range: Dc 12v-24v AMP Chip: TPA3116D2
Series: Amplifier Audio Module Description: Amplifier Audio Module
Mounting Type: Direct Mounting Package: Yes
Channels: 3 (2.1) Maximum Power Per Channel: 50W
Max Output Power: 2*50W+100W Power Supply: DC12~24V
Highlight:

Stereo Equalizer Amplifier Board

,

2.1 Channel Audio Amplifier Board

,

5.0 HIFI Power Amplifier Board

CA-3169B 2.1 Channel Audio 5.0 HIFI Power Subwoofer Stereo Equalizer High Fidelity Sound Power Amplifier Board
Advanced 2.1 channel digital amplifier board featuring dual TPA3116D2 chips for high-fidelity audio performance with Bluetooth 5.0 connectivity.
Technical Specifications
  • Product Name: 2.1 Channel TPA3116D2 Digital Amplifier
  • AMP Chip: Dual TPA3116D2
  • Max Output Power: 2×50W + 100W
  • Power Supply: DC 12-24V
  • Channels: 2.1
  • Efficiency: 90%
  • Output Impedance: Left/Right 4-8 ohm, Subwoofer 2-8 ohm
  • Audio Input: Bluetooth / AUX
  • Bluetooth Version: 5.0
  • Working Type: Class D
  • Size: 100×101×25mm
Function Instructions
  • Default operation mode is Bluetooth
  • When Bluetooth is disconnected, long press Volume button to switch to AUX input
  • When Bluetooth is playing, short press Volume button to Pause/Play
