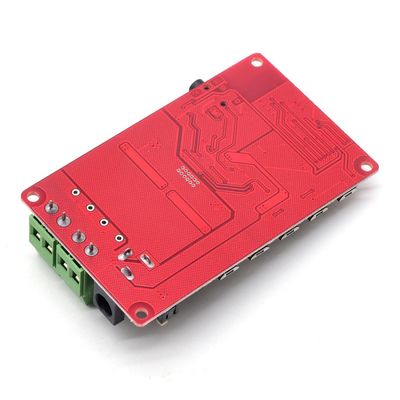

CA-7492B Digital Power BT Amplifier Module with CSR5.0 Bluetooth 2*50W Output and 8-24V DC Power

CA-7492B Digital Power BT Amplifier Module with CSR5.0 Bluetooth 2*50W Output and 8-24V DC Power
CA-7492B Digital Power BT Amplifier Module with CSR5.0 Bluetooth 2*50W Output and 8-24V DC Power CA-7492B Digital Power BT Amplifier Module with CSR5.0 Bluetooth 2*50W Output and 8-24V DC Power CA-7492B Digital Power BT Amplifier Module with CSR5.0 Bluetooth 2*50W Output and 8-24V DC Power CA-7492B Digital Power BT Amplifier Module with CSR5.0 Bluetooth 2*50W Output and 8-24V DC Power

Large Image :  CA-7492B Digital Power BT Amplifier Module with CSR5.0 Bluetooth 2*50W Output and 8-24V DC Power

Product Details:
Place of Origin: China
Brand Name: Creatall
Certification: CE
Model Number: CA-7492B
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100000pcs
Contact Now

CA-7492B Digital Power BT Amplifier Module with CSR5.0 Bluetooth 2*50W Output and 8-24V DC Power

Description
Highlight:

Digital Power BT Amplifier Module

,

CSR5.0 Audio Board With TDA7492

,

CSR5.0 Audio Board With BT

CA-7492B Digital Power BT Amplifier Module CSR5.0 Audio Board With BT TDA7492
Product Overview
The CA-7492B Digital Power BT Amplifier Module is a high-performance audio board featuring CSR5.0 Bluetooth technology and TDA7492 amplification. This module automatically enters pairing mode upon power-up and provides versatile audio connectivity options.
Key Features
  • Automatic pairing mode with device name: SANWU Audio (customizable for bulk orders)
  • Power supply: 2.1 ports supporting 8-25V DC power input
  • Bluetooth connectivity using CSR8635 chip with BT V5.0 compatibility
  • Output impedance: 8 ohms optimal (supports 4, 6, 8, 16 ohm speakers)
  • High output power capability with 5532 operational amplifier
  • DIP switches for convenient power amplifier gain adjustment
  • AUX audio input with mixing output capability for AUX & Bluetooth
Technical Specifications
Power Supply 2.1 interface, 8-24V DC power input
Audio Input Bluetooth connection input with CSR8635 Bluetooth 4.0 module
Output Impedance 8 ohms optimal (supports 4, 6, 8, 16 ohm speakers)
Output Power Official nominal power: 2*50W @ 6Ω
Bluetooth Version BT V5.0 with high device compatibility
Operation Instructions
Connect the power supply and wait approximately 3 seconds until the LED blue and red lights flash alternately. The device is then ready for use.
Bluetooth Connection
Search for Bluetooth amplifier on your mobile device - device name appears as "SANWU Audio". Click to connect. The device features automatic connection memory function.
Control Functions
  • Play/Pause
  • Next Song
  • Previous Song
  • Volume Up
  • Volume Down
Note: This amplifier module is designed for optimal performance with various speaker impedances and provides flexible audio input options for professional and consumer applications.
