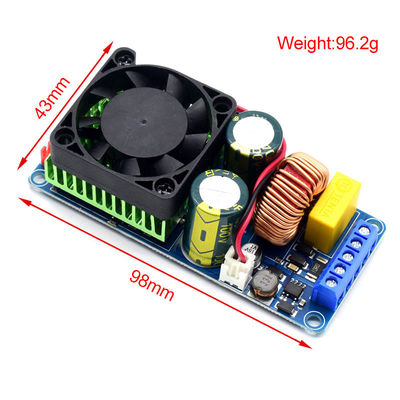

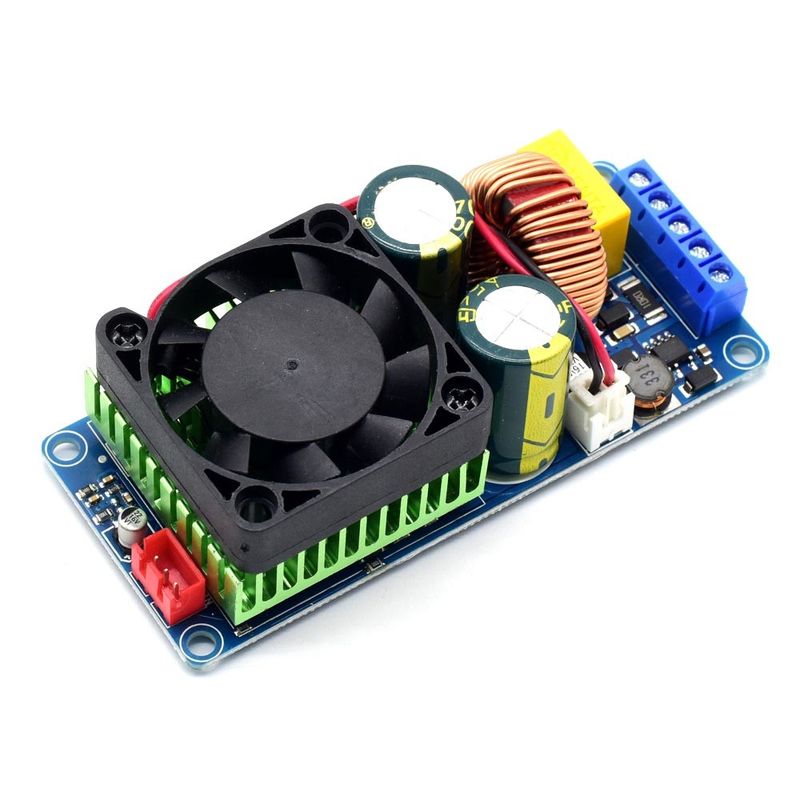

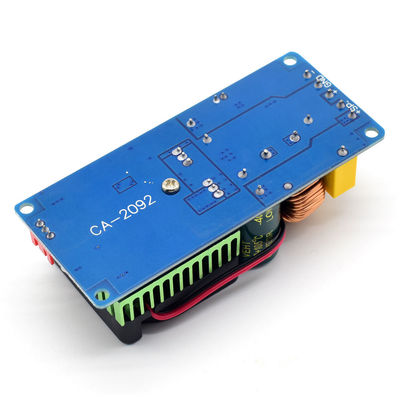

500W Mono Channel Digital Amplifier Board with IRS2092S Chip HIFI Power Amplifier Module

500W Mono Channel Digital Amplifier Board with IRS2092S Chip HIFI Power Amplifier Module
500W Mono Channel Digital Amplifier Board with IRS2092S Chip HIFI Power Amplifier Module 500W Mono Channel Digital Amplifier Board with IRS2092S Chip HIFI Power Amplifier Module 500W Mono Channel Digital Amplifier Board with IRS2092S Chip HIFI Power Amplifier Module 500W Mono Channel Digital Amplifier Board with IRS2092S Chip HIFI Power Amplifier Module

Large Image :  500W Mono Channel Digital Amplifier Board with IRS2092S Chip HIFI Power Amplifier Module

Product Details:
Place of Origin: GUANGDONG CHINA
Brand Name: Creatall
Model Number: CA-2092
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiable
Delivery Time: 5-8 work days
Supply Ability: 10000 Piece/Pieces per Day
Contact Now

500W Mono Channel Digital Amplifier Board with IRS2092S Chip HIFI Power Amplifier Module

Description
Model: CA-2092 Brand: Creatall
Output Power: 500W Input Voltage: Dual DC Power Supply: ±55v-±80v
Output Impedance: 4-8Ω Chip Model: IRS2092S
Installation Aperture: 3mm Number Of Channels: Mono
Amplification: 50 Times Frequency Range: 20Hz-20KHz
Highlight:

Stage Power Amplifier Board

,

IRS2092 Power Amplifier Board

,

HIFI Power Amplifier Module

CA-2092 Digital Amplifier Board 100W Mono Channel HIFI Power Amplifier Module IRS2092
Product Overview

IRS2092 500W Stage Power Amplifier Board Class D Mono Channel HIFI Power Amplifier Module with dual DC power supply for professional sound system applications.

Key Features
  • High Power Output: 500W single-channel digital amplifier delivering clear, immersive audio performance
  • Comprehensive Protection: Built-in short circuit protection, overheating protection, and speaker protection
  • Superior Heat Dissipation: Advanced cooling design for reliable performance during extended operation
  • Dual DC Power Supply: Requires ±55V to ±80V dual power supply configuration
  • Single-Channel Design: Focused audio reproduction with precise channel separation
Technical Specifications
SpecificationDetails
OriginMainland China
TypeModule
ConditionNew
Model NumberDigital Amplifier Board
Product ModelCA-2092
Input VoltageDual DC Power Supply ±55V-±80V
Output Power500W
Chip TypeClass D
Chip ModelIRS2092S
Output Impedance4-8Ω
Amplification50 Times
Frequency Range20Hz-20KHz
Installation Aperture3mm
Number of ChannelsMono
Protection FunctionsShort Circuit, Overheating, Speaker Protection
Important Usage Notes

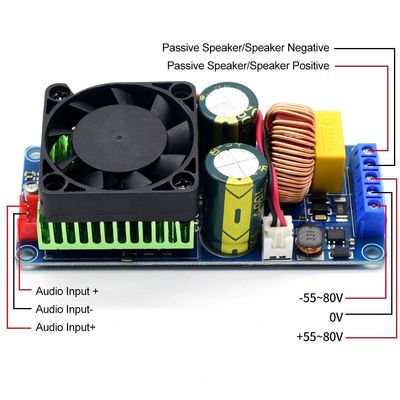

Power Supply Requirements: Rated supply voltage is ±70V for dual power supply. Operates normally within ±55V-±80V range. Single power supply will not work.
Speaker Compatibility: Recommended for 10-18 inch speakers with 4Ω-8Ω impedance.
Power Calculation: Maximum effective power 500W (at ±75V with 4Ω load and 1V RMS input). Power output depends on voltage and load: P = V²/R.
Safety Precautions: Always verify correct wiring before powering on. Ensure power supply capacity exceeds amplifier requirements. Avoid output short circuits.
Product Images
500W Mono Channel Digital Amplifier Board with IRS2092S Chip HIFI Power Amplifier Module 0 500W Mono Channel Digital Amplifier Board with IRS2092S Chip HIFI Power Amplifier Module 1 500W Mono Channel Digital Amplifier Board with IRS2092S Chip HIFI Power Amplifier Module 2
