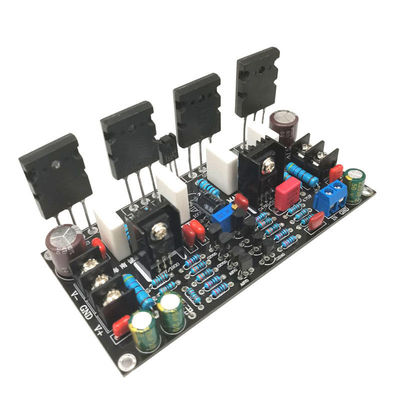

200W Mono Power Amplifier Board with A1943/C5200 High Power Tube and Wide Power Supply Range

Name: 200W Mono Power Amplifier Board with A1943/C5200 High Power Tube and Wide Power Supply Range
Brand: Shenzhen Creatall Electronics Co., Ltd.
SKU: 200W Mono Power Amplifier
Price: 425.20 USD
Availability: InStock

Brand Name:	creatall
Model Number:	200W Mono Power Amplifier
MOQ:	10pcs
Price:	NA
Delivery Time:	5-8 working days
Payment Terms:	T/T, AliPay, PayPal

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Name:

200W Mono Power Amplifier

Size:

120 X 60 X 45MM

Material:

Abs

Real Power:

Undistorted Power 200W, Maximum Power 300W.

Packaging Details:

Carton box

Supply Ability:

1000 pcs/day

Highlight:

ABS Mono Amplifier Board

A1943 amplifier board supplier

amplifier board manufacturer

Product Description

ABS 200W Power Mono Amplifier Board 1943 + 5200 High Power Tube Amp

Product Overview

This single-channel power amplifier board features advanced circuit design with A970/C2240 high-voltage audio pair tube dual differential circuitry and A1145/C2705 for voltage amplification. The output stage utilizes A1943/C5200 high-power Toshiba pair tubes for exceptional performance.

Key Performance: Undistorted power 200W, maximum power 300W with wide power supply range (DC ±20V-90V). Delivers excellent sound quality with strong driving capability, capable of powering 15-inch speakers effortlessly.

Technical Specifications

Product Name	Amplifier Audio Module
Product Model	200W Mono Power Amplifier
Product Size	120 x 60 x 45mm
Material	ABS
Color	Black
Power Supply	Dual voltage, DC ±20-90V (recommended below 90V)

Circuit Design Features

A970/C2240 high-voltage audio pair tube dual differential circuit
A1145/C2705 for voltage amplification
Mid-power pair tube A1837/C4793
Output stage uses A1943/C5200 high-power Toshiba pair tube
Optimized circuit and components in upgraded version

Packaging & Shipping

The Amplifier Audio Module is shipped in secure, durable packaging designed to protect against external damage and shock during transportation. Shipping options include ground or air transport based on customer preference, with costs calculated according to weight and distance.

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

Ahmad Ali

Malaysia Mar 25.2026

Helpful (655)

Saya sangat puas dengan modul penguat ini! Bunyi jelas dan bes kuat. Dibuat dengan baik, tiada masalah panas lama digunakan.

Santiago Pérez

Argentina Mar 8.2026

Helpful (438)

Excelente placa amplificadora clase D! Fácil conexión, sin ruido, emparejamiento inalámbrico estable. Ideal para parlantes DIY pequeños.

Oscar Nilsson

Sweden Feb 10.2026

Helpful (2314)

in liten Bluetooth-förstärkare! Stabil Bluetooth 5.0-anslutning, ren 3W-ljudutgång. Fungerar bra med 5V-ström, kompakt och praktisk.
