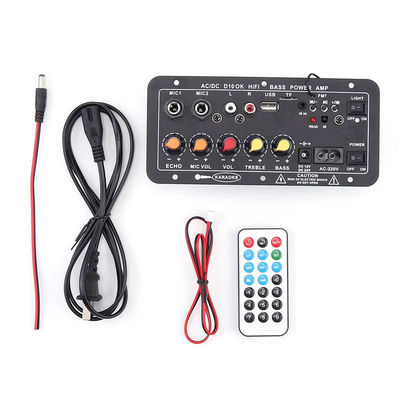

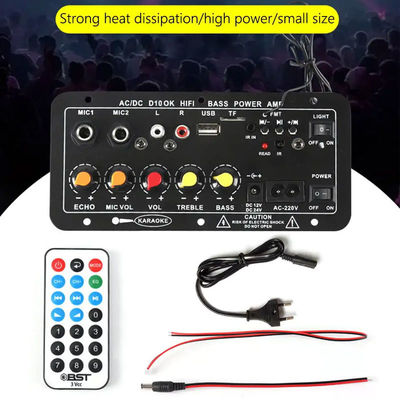

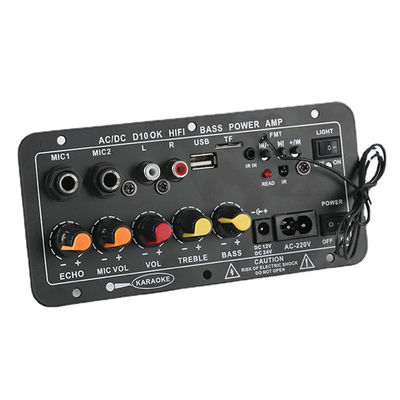

D10 Digital Power Amplifier Board with 30-120W Output Power Bluetooth 5.0 and Dual Microphone Input for Subwoofer and Karaoke

Name: D10 Digital Power Amplifier Board with 30-120W Output Power Bluetooth 5.0 and Dual Microphone Input for Subwoofer and Karaoke
Brand: Shenzhen Creatall Electronics Co., Ltd.
SKU: D10 Amplifier Board
Price: 425.20 USD
Availability: InStock

Brand Name:	creatall
Model Number:	D10 Amplifier Board
MOQ:	10pcs
Price:	Manufacturer

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model:

D10

Panel Material::

Wrought Iron

Output Power:

30-120W

Support Voltage::

220V/12V/24V

Color Classification::

Black Craft

Bluetooth-compatible Call::

Not Supported

Bluetooth-compatible Version:

5.0

FM Radio::

Support

Product Size::

175X80X50mm

Product Weight::

210g

Highlight:

24V Digital Power Amplifier Board

D10 amplifier board supplier

amplifier board manufacturer

Product Description

D10 12V 24V Subwoofer Digital Power Amplifier Board

Product Specifications

Product Model	D10
Panel Material	Wrought Iron
Output Power	30-120W
Support Voltage	220V/12V/24V
Color Classification	Black Craft
Bluetooth Version	5.0

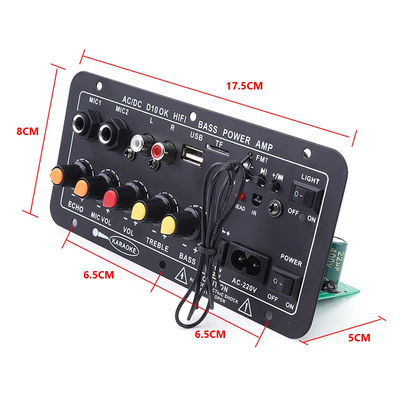

Product Size	175×80×50mm
Product Weight	210g

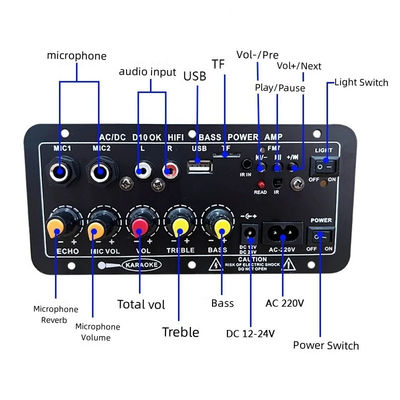

Key Features

Supports MP3 playback from TF card and USB drive
Independent adjustment of treble, bass, and main volume
Working voltage: AC 220V or DC 12-24V
AUX audio input for computer, mobile phone, and other devices
Digital power amplifier with 400W crest power, drives 4 ohm and 100 magnetic speakers
Dual microphone input with adjustable reverberation
Built-in Bluetooth wireless receiver and FM radio
Single song loop playback function
Double circuit board design with quality materials, no heat during operation

Bluetooth Connection

Press "MODE" key to switch to Bluetooth state
Turn on mobile phone Bluetooth and search for devices
Select the product's Bluetooth name to connect
Once connected, you can play music from your mobile device

Note: If prompted for PIN code, enter "0000" (some phones support easy pairing without PIN)

Radio Operation

Connect the radio antenna
Press MODE button to switch to radio state
Press play button to search all channels (automatically saves stations)
Use previous/next track buttons to switch between stations

Power Connection

DC 12V/24V interface: Connect to DC 12V or 24V with current requirement ≥3A (battery or power adapter)
AC 100-240V interface: Connect to AC power supply using figure 8 power cord

Important: Do not touch circuit board after power-on to avoid electric shock. Only use one power connection method at a time.

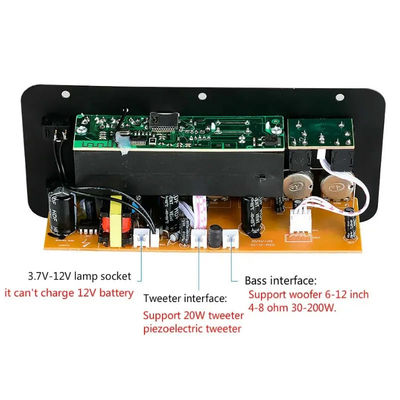

Speaker Connection

Subwoofer: Connect speaker with approximately 100 magnet or 100W speaker
Tweeter: Connect 30W tweeter (add capacitor when connecting tweeter)
Suitable for 8-12 inch speakers

Important Usage Notes

Always start with small master volume before testing. Gradually increase volume after powering on. If sound becomes intermittent, hoarse, or distorted while increasing volume, this indicates speaker and amplifier mismatch. Reduce volume or change speakers.
