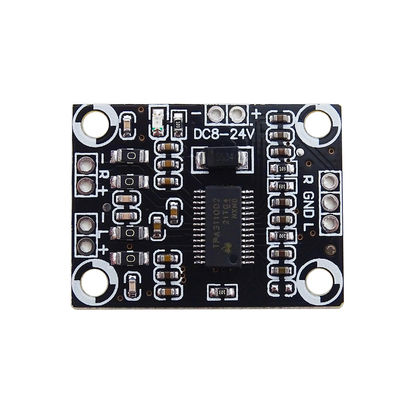

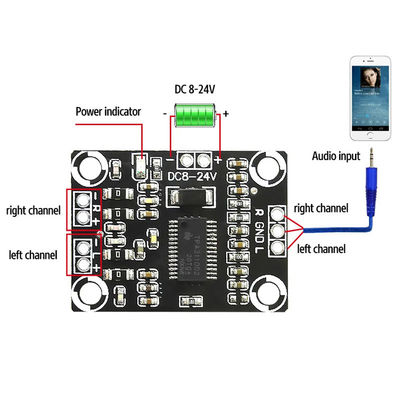

CA-3110 Digital Amplifier Board 2x15W Stereo Class D 8-24V DC with TPA3110 Chip

CA-3110 Digital Amplifier Board 2x15W Stereo Class D 8-24V DC with TPA3110 Chip
CA-3110 Digital Amplifier Board 2x15W Stereo Class D 8-24V DC with TPA3110 Chip CA-3110 Digital Amplifier Board 2x15W Stereo Class D 8-24V DC with TPA3110 Chip CA-3110 Digital Amplifier Board 2x15W Stereo Class D 8-24V DC with TPA3110 Chip

Large Image :  CA-3110 Digital Amplifier Board 2x15W Stereo Class D 8-24V DC with TPA3110 Chip

Product Details:
Place of Origin: China
Brand Name: creatall
Certification: CE, ISO9001
Model Number: CA-3110
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: NA
Packaging Details: Carton box
Delivery Time: 5-8 working days
Payment Terms: T/T, AliPay, PayPal
Supply Ability: 1000 pcs/day
Contact Now

CA-3110 Digital Amplifier Board 2x15W Stereo Class D 8-24V DC with TPA3110 Chip

Description
Work Type: Class D Output Power: 2*15W
Voltage: DC 8-24V Output Impedance: 4-8Ω
Product Size: 33mm*25mm*3.5mm Static Current: 8mA
Max: 3A Amplifier Chip: TPA3110
Highlight:

Highly Efficient Amplifier Module 5v

,

1.77x1.22 In Amplifier Module 5v

,

PAM8403 Amplifier Board Module

CA-3110 Digital Amplifier Audio Board 2x15W Stereo Class D 8-24V TPA3110 AMP
The CA-3110 Digital Amplifier Audio Board delivers high-quality stereo audio amplification with exceptional efficiency and performance.
Product Overview
Professional-grade stereo amplifier board featuring TPA3110 chip technology, designed for reliable performance in various audio applications.
Key Features
  • High-efficiency Class D amplifier design
  • Excellent signal-to-noise ratio for clean audio
  • Wide frequency response range
  • Compact form factor with minimal weight
Technical Specifications
Product Name CA-3110
Amplifier Chip TPA3110
Output Power 15W x 2
Working Voltage DC 8-24V
Working Current Max: 3A
Static: 8mA
Efficiency ≥90%
SNR 100dB
Frequency Range 20Hz-20KHz

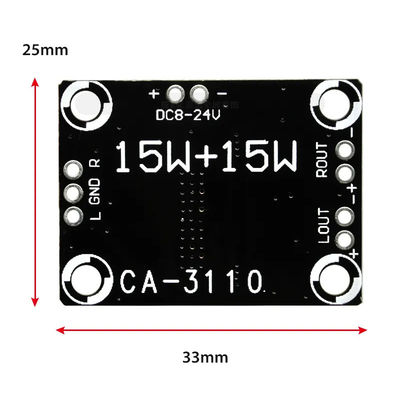

Size 33 x 25 x 3.5mm
Speaker Compatibility 4-8Ω
Net Weight Approximately 4g
