Product Details:
|
| Humidity Range:: | 00%~99%RH | Humidity Control Accuracy:: | 0.1% RH |
|---|---|---|---|
| Measurement Accuracy:: | +/- 2% RH | Load Power:: | 12v 120w Or 24v 240w Or 220v 1500w (depending On Your Choice) |
| MAX Output:: | 10A | Output Type:: | Direct Output |
| Highlight: | Temp And Humidity Meter Egg Incubator,Cooling Control Temp And Humidity Meter,Heating Temp And Humidity Gauge |
||
Be able to control temperature and humidity at the same time.
Be able to connect with humidifier and dehumidifier equipment at the same time.
Be able to connect with refrigeration/ heating and humidifier/dehumidifier equipment at the same time.
Heating/Cooling function could be set separately for refrigeration and heating to protect temperature controller from violent change.Same as humidity Control.
Supporting Temp and Humidity Calibration
[Dual Display Window] Be able to display measured temperature/humidity and set temp/humidity at the same time
Specification:

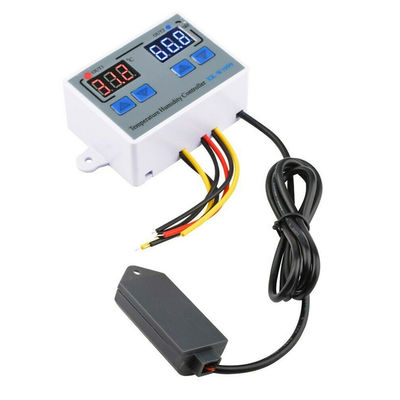

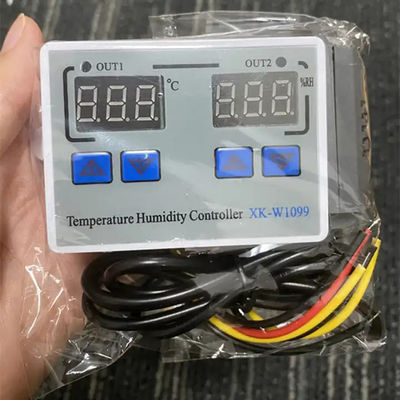

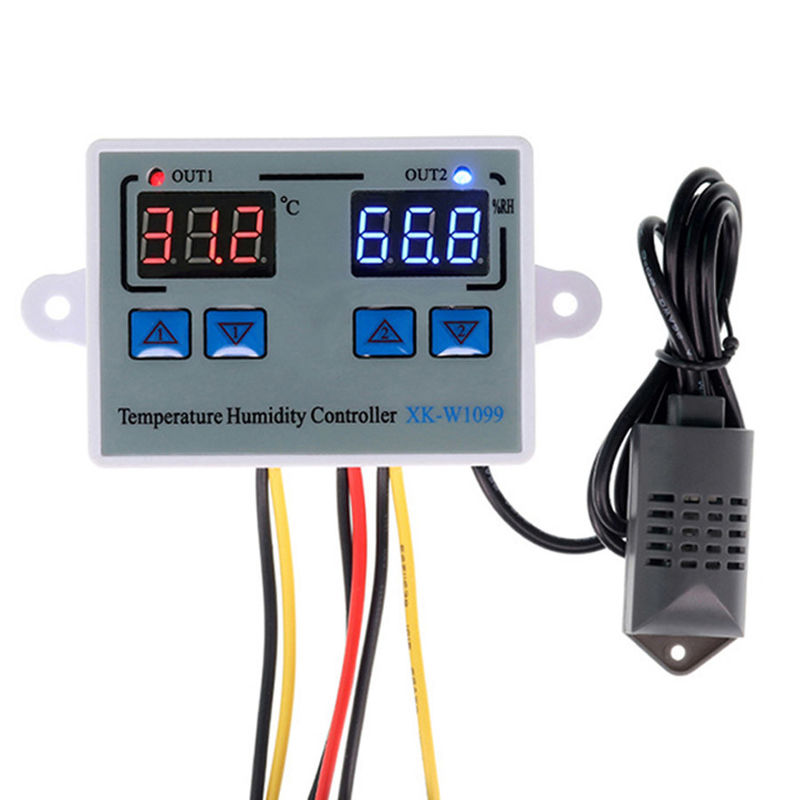

Model: XK-W1099
Input voltage: AC110~220V± 10%, DC24V, DC12V
Measuring temperature range: 0°C~+100° C
Measuring humidity range: 00%RH~+100%RH
Accuracy: ±1°, 0.1%RH
Relay output contact capacity: 10A Direct Output
Shell material: PC + ABS fireproof
Sensor length: 1m
-------------
Set startup temperature( hunidity):
Press the "up" button once to display the starting temperature(humidity). Long press the "up" button for about 3 seconds,The required temperature(humidity) can be set by the up and down keys
Set the stop temperature( hunidity):
Press the "down"button once to display the stop temperature(humidity). Long press the button for about 3 seconds and the stop temperature(humidity) number flashes. The required temperature(humidity) can be set by the up and down keys
temperature( hunidity) correction:
Press "up" and "down button at the same time.
How to reset the product:
Press "down 1" and "down 2" for 3 seconds.
Package includes:
1 X Temperature Humidity Controller
