DC 0-100V Digital Ammeter Voltmeter 10A 100A Ac Voltmeter Ammeter

Name: DC 0-100V Digital Ammeter Voltmeter 10A 100A Ac Voltmeter Ammeter
Brand: Shenzhen Creatall Electronics Co., Ltd.
Price: 499.07 USD
Availability: InStock

All Products

Amplifier Board Module
(274)

Power Supply Module
(253)

Bluetooth Audio Module
(12)

BMS Battery Protection Board
(26)

Home Amplifier
(48)

Car Player
(106)

LED TV Parts
(39)

Digital Ammeter Voltmeter
(17)

Digital Humidity Controller
(11)

Tester Tool
(11)

Development Board
(80)

Certification

Customer Reviews

Great products from a good supplier, goods are working nicely ⭐⭐⭐⭐⭐I will order again thank you！

—— Gift Adonsi

I received my parcel well on time everything was done above board the salesman was very helpful. The quality of the product is very good. I do not hesitate to do business with them again.

—— Anyway Violah

perfect timing n communication perfect on product information perfect on after sales support perfect on shipping time

—— Ismail Khamis

So good quality module is provided by the seller. And easy to communicate very fast responding also.

—— Sayanik Mandal

What a good service from creatAll, very responsible! Good Job! Nice to have a business with u

—— Erick Setiawan

I'm Online Chat Now

DC 0-100V Digital Ammeter Voltmeter 10A 100A Ac Voltmeter Ammeter

Large Image : DC 0-100V Digital Ammeter Voltmeter 10A 100A Ac Voltmeter Ammeter

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	other

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	negotiable
Packaging Details:	carton box
Delivery Time:	5-8 work days
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000 Piece/Pieces per Day

Contact Now

DC 0-100V Digital Ammeter Voltmeter 10A 100A Ac Voltmeter Ammeter

Description

Manufacturer Part Number:	Creatall	Type:	Integrated Circuit
Product Name::	AC Digital Display Voltmeter Ammeter	Measuring Range:	4.5-30V DC
Accuracy Class:	0.01V	Measurement Accuracy:	1%±2 Words
Current Range:	AC0-100A	Working Power Supply Voltage:	AC 220V
Operating Temperature:	-10℃~+50℃	Voltage Range:	AC 0- 500V
Port:	Shenzhen Port,guangzhou Port
Highlight:	100V Digital Ammeter Voltmeter , Digital Ammeter Voltmeter 10A , 100A Ac Voltmeter Ammeter

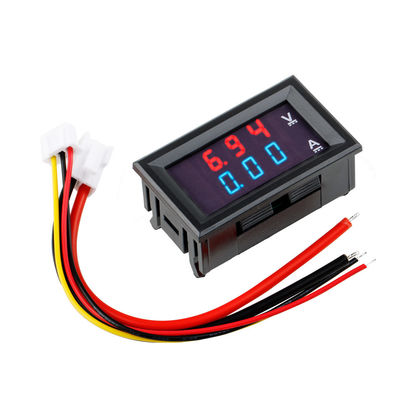

DC 0-100V 10A 100A Digital Voltmeter Ammeter Dual Display Voltage Detector Current Meter Panel Amp Volt Gauge Red Blue LED

Product Description:

Voltage measurement range: 0.0V-100V
Current test range: 0-999mA, 0-10A, 0-50A, 0-100A (4 ranges are optional)
Power supply range: DC4-30.0V
Voltage error: ±0.1%
Current error: ±1%
External shunt specification: 75 milliohms
Working current: < 20mA
Refresh rate: about 300mS once
Display mode: double three-digit 0.28'' LED digital tube
Display color: red + blue
Lead length: 15cm

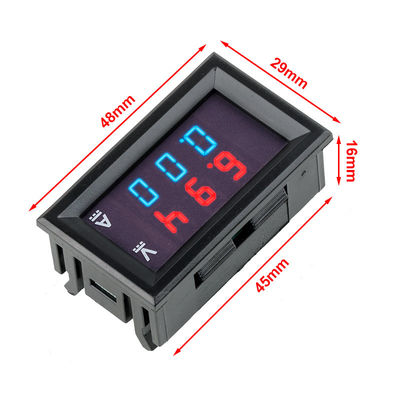

Dimensions: 48 x 29 x 22 mm
Mounting hole: 46 x 27 mm
Working temperature: -10℃~65℃
