Product Details:
|
| Display Type: | Analog And Digital | Measuring Range: | LED Digital Voltmeter Ammeter |
|---|---|---|---|
| Dimensions: | 0.36' | Product Name: | Red Panel Monitor Volt Detector Tester |
| Display: | LED | Key Words: | Digital Voltmeter |
| Size: | 0.28/0.36/0.56 Inch | Type: | Digital Voltmeter |
| Warranty: | 1 Year | Material: | Plastic |
| LED Color: | Red/ Green/ Yellow/ Blue | Port: | Shenzhen Port,guangzhou Port |
| Highlight: | Digital Ammeter Voltmeter 0.56 Inch,Digital Ammeter Voltmeter 0.28 Inch,Voltage Current Meter 0.36 Inch |
||
Measuring range:DC 2.8V-30V
Working current:<30Ma
Input range:Dc 5-30V

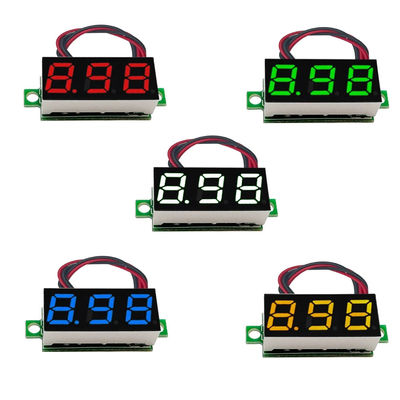

Display:Three:0.28inch digital tube(red,blue,green)

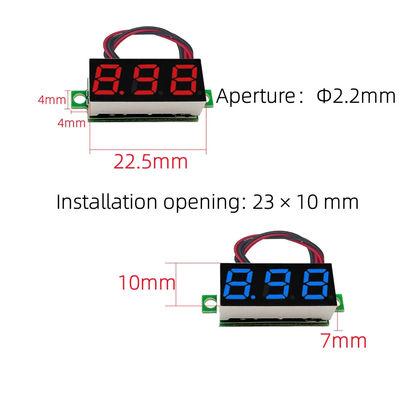

Dimensions:31mm*11.5mm*9mm(L*W*H)
Measurement accuracy:1%
Operation Temp:-10°-+80°
Color Red/Green/Yellow:
Voltage range:2.8V - 30V
Note:
when we measure the voltage less than 10V, our voltmeter display the figure is accurate to two decimal places;when we measure the voltage more than 10V,our voltmeter display the figure is accurate to one decimal places.
The voltmeter is easy to connect, the conventional two lines, red positive, black negative, there is reverse connection protection, and the connection does not burn.
