CA-6S-12A-E 24V PCB BMS Protection Board For 6 Pack 18650 Li Ion Lithium Battery Module

CA-6S-12A-E 24V PCB BMS Protection Board For 6 Pack 18650 Li Ion Lithium Battery Module
CA-6S-12A-E 24V PCB BMS Protection Board For 6 Pack 18650 Li Ion Lithium Battery Module CA-6S-12A-E 24V PCB BMS Protection Board For 6 Pack 18650 Li Ion Lithium Battery Module CA-6S-12A-E 24V PCB BMS Protection Board For 6 Pack 18650 Li Ion Lithium Battery Module

Large Image :  CA-6S-12A-E 24V PCB BMS Protection Board For 6 Pack 18650 Li Ion Lithium Battery Module

Product Details:
Place of Origin: Guangdong, China
Brand Name: Creatall
Model Number: CA-6S-12A-E
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiable
Delivery Time: 5-8 work days
Supply Ability: 1000 Piece/Pieces per Day

CA-6S-12A-E 24V PCB BMS Protection Board For 6 Pack 18650 Li Ion Lithium Battery Module

Description
Name: 6s 12A Battery Bms Port: Shenzhen Port.guangzhou Port
Input Voltage:: 5V Charging Cut-off Voltage:: 4.2V ±1%
Communication Interface: UART/CAN/I2C Application: Electric Vehicle/Energy Storage/UPS
Product Name: BMS Battery Protection Board Protection Function: Over Voltage/Over Current/Short Circuit/Over Temperature/Under Voltage/Balancing
Highlight:

24V PCB BMS Protection Board

,

6S BMS Protection Board

,

battery protection board 18650 Li Ion

6S 12A 24V PCB BMS Protection Board For 6 Pack 18650 Li-ion Lithium Battery Module

Product Description:



Specifications:

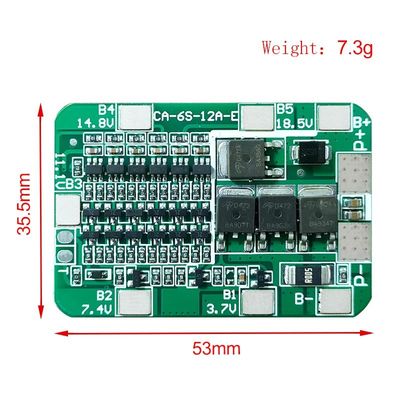

  • Size: approx.50*30*2mm
  • Lampshift maximum discharge current: 12A
  • Instantaneous discharge current: 25A
  • Charging voltage: 25.5V
  • Charging current: 15A (MAX)
  • Overcharge detection voltage: 4.28 ± 0.05V
  • Overcharge protection delay: 0.1S
  • Overcharge release voltage: 4.08 ± 0.05V
  • Over discharge detection voltage: 2.55 ± 0.08V
  • Overdischarge detection delay: 0.1S
  • The overdischarge release voltage: 2.9 ± 0.1V
  • Overcurrent detection voltage: 150mV
  • Overcurrent detection delay: 9MS
  • Overcurrent protection current: 30 ± 3A
  • Overcurrent protection release condition: Disconnect the load
  • Short circuit detection delay: 250uS
  • Short circuit protection Release condition: disconnect negative open
  • Main circuit conduction resistance: ≤20mΩ
  • Working current: ≤30uA
  • Sleep current (battery over discharge) ≤10uA
  • Temperature range: -30 / + 80 °​​



Features:

  • Fine workmanship and durable.
  • For the rechargeable (generally refers to the lithium battery) from the protection of the integrated circuit board. Lithium
  • battery (rechargeable type) so need protection.
  • As the lithium battery itself determines the material itself can not be overcharge, over discharge, overcurrent, short circuit and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow a protective resistor with a sampling resistor and a current fuse.



Note:

  • Please allow 1-5mm errors due to manual measurement.

  • Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
