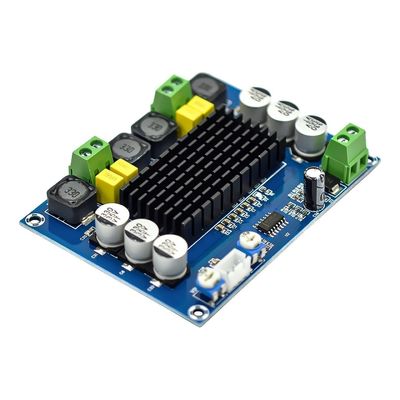

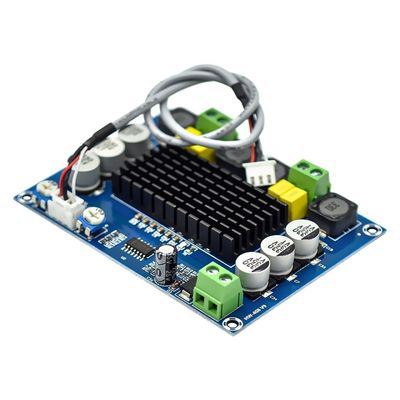

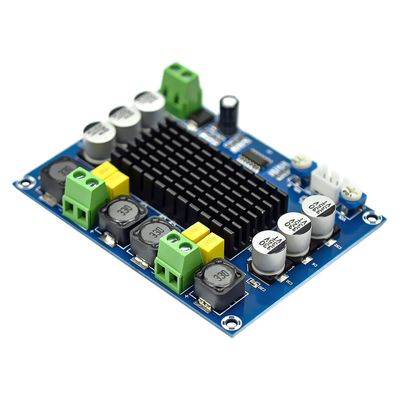

TPA3116D2 Digital Audio Amplifier Board 50Wx2 Dual Channel Stereo Power with DC12-24V Input

All Products

Amplifier Board Module

(283)

Power Supply Module

(254)

Bluetooth Audio Module

(12)

BMS Battery Protection Board

(22)

Home Amplifier

(48)

Car Player

(106)

LED TV Parts

(39)

Digital Ammeter Voltmeter

(17)

Digital Humidity Controller

(11)

Tester Tool

(11)

Development Board

(80)
Best Products
CA-3118 DC12-24V Amplifier Audio ModuleTPA3118 1*60W AMP

CA-3118 DC12-24V Amplifier Audio ModuleTPA3118 1*60W AMP

TPA3110 High Power Audio Amplifier Board 15W*2 DC 8-18V

TPA3110 High Power Audio Amplifier Board 15W*2 DC 8-18V

CA-8403 Audio Amplifier Module

CA-8403 Audio Amplifier Module

Certification
China Shenzhen Creatall Electronics Co., Ltd. certification
China Shenzhen Creatall Electronics Co., Ltd. certification
Customer Reviews
Great products from a good supplier, goods are working nicely ⭐⭐⭐⭐⭐I will order again thank you！

—— Gift Adonsi

I received my parcel well on time everything was done above board the salesman was very helpful. The quality of the product is very good. I do not hesitate to do business with them again.

—— Anyway Violah

perfect timing n communication perfect on product information perfect on after sales support perfect on shipping time

—— Ismail Khamis

So good quality module is provided by the seller. And easy to communicate very fast responding also.

—— Sayanik Mandal

What a good service from creatAll, very responsible! Good Job! Nice to have a business with u

—— Erick Setiawan

I'm Online Chat Now

TPA3116D2 Digital Audio Amplifier Board 50Wx2 Dual Channel Stereo Power with DC12-24V Input

TPA3116D2 Digital Audio Amplifier Board 50Wx2 Dual Channel Stereo Power with DC12-24V Input
TPA3116D2 Digital Audio Amplifier Board 50Wx2 Dual Channel Stereo Power with DC12-24V Input
TPA3116D2 Digital Audio Amplifier Board 50Wx2 Dual Channel Stereo Power with DC12-24V Input TPA3116D2 Digital Audio Amplifier Board 50Wx2 Dual Channel Stereo Power with DC12-24V Input TPA3116D2 Digital Audio Amplifier Board 50Wx2 Dual Channel Stereo Power with DC12-24V Input TPA3116D2 Digital Audio Amplifier Board 50Wx2 Dual Channel Stereo Power with DC12-24V Input

Large Image :  TPA3116D2 Digital Audio Amplifier Board 50Wx2 Dual Channel Stereo Power with DC12-24V Input

Product Details:
Place of Origin: Guangdong, China
Brand Name: Creatall
Certification: CE
Model Number: CA-3116S
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiable
Delivery Time: 5-8 work days
Supply Ability: 1000 Piece/Pieces per Day
Contact Now

TPA3116D2 Digital Audio Amplifier Board 50Wx2 Dual Channel Stereo Power with DC12-24V Input

Description
Supply Voltage: 12-24V Package Type: Electrostatic Bag
Series: Amplifier Audio Module Quality: High-quality
Size: 79.9 X 54.2MM Amplifier Power: 50Wx2
Condition: 100% Original Chip: TPA3116
Output Interface: Speaker Terminal
Highlight:

50W*2 Digital Audio Amplifier Board

CA-3116S Digital Audio Amplifier Board DC12-24V 50W*2 Dual Channel Stereo Power TPA3116D2
Product Specifications
  • Amplifier Board: 50W*2 power
  • Product Name: CA-3116S digital power amplifier board
  • Chip Type: TPA3116D2
  • Transmission Distance: 10 m Max (no interference block)
  • Supply Voltage: DC12-24V (positive inside and negative outside)
  • Supply Current: > 3A
  • Output Power: 50W*2
  • Number of Tracks: Dual tracks (high and bass adjustment)
Product Introduction

TPA3116D2 digital power amplifier board features dual-channel operation, high power output, and impressive volume performance. With an input voltage range of DC 12-24V (24V recommended), this board incorporates the TL074C operational amplifier chip. Audio signals are first processed through the op-amp chip for amplification before reaching the power amplifier chip, delivering powerful and impactful sound.

Operation Instructions

Connect power input to DC12V-24V power supply (24V recommended for optimal performance)

Connect audio input to sound source devices such as MP3 players, mobile phones, or computers

Connect audio output terminals to speakers, ensuring correct polarity. For best performance, use professional stage speakers rated above 120W.

TPA3116D2 Digital Audio Amplifier Board 50Wx2 Dual Channel Stereo Power with DC12-24V Input 0

Overall Rating

4.7
Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings
5 stars
67%
4 stars
33%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

P
Pierre Dubois
Belarus May 10.2026
Helpful (245)
Excellent amplificateur audio 5.1 canaux! La puissance de 200W+200W est parfaite pour mon système home cinéma. La connexion Bluetooth fonctionne parfaitement. Qualité sonore exceptionnelle avec un son surround immersif. Installation facile et très bon rapport qualité-prix. Hautement recommandé!
H
Hans Müller
Germany Jan 8.2025
Helpful (41)
Impressive build quality and power! I installed this in my home theater system, and the bass is absolutely amazing. The 240W output can easily fill my 35㎡ living room with deep, punchy bass. The dual AC18-24V input is very flexible, and the board has good heat dissipation - it runs cool even after 4 hours of continuous use. I've had it for 6 months now, no issues at all. Perfect for home theater upgrades!
L
Luca Bianchi
Italy Oct 14.2024
Helpful (543)
Modulo compatto e funzionale. Riproduce bene la musica da scheda TF, perfetto per piccoli progetti fai da te.
