CA-3116P Digital Amplifier Module with TPA3116D2 Chip 50Wx2+100W Output and DC12-24V Voltage

CA-3116P Digital Amplifier Module with TPA3116D2 Chip 50Wx2+100W Output and DC12-24V Voltage
CA-3116P Digital Amplifier Module with TPA3116D2 Chip 50Wx2+100W Output and DC12-24V Voltage
CA-3116P Digital Amplifier Module with TPA3116D2 Chip 50Wx2+100W Output and DC12-24V Voltage CA-3116P Digital Amplifier Module with TPA3116D2 Chip 50Wx2+100W Output and DC12-24V Voltage CA-3116P Digital Amplifier Module with TPA3116D2 Chip 50Wx2+100W Output and DC12-24V Voltage CA-3116P Digital Amplifier Module with TPA3116D2 Chip 50Wx2+100W Output and DC12-24V Voltage

Large Image :  CA-3116P Digital Amplifier Module with TPA3116D2 Chip 50Wx2+100W Output and DC12-24V Voltage

Product Details:
Place of Origin: Guangdong, China
Brand Name: Creatall
Model Number: CA-3116P
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiable
Delivery Time: 5-8 work days
Supply Ability: 10000 Piece/Pieces per Week
Contact Now

CA-3116P Digital Amplifier Module with TPA3116D2 Chip 50Wx2+100W Output and DC12-24V Voltage

Description
Application: Amplifier Audio Module Product Name: CA-3116P Digital AMP
Chip: TPA3116D2 Voltage: DC12-24V
Power: 2*50w+100w Port: Shenzhen Port Guangzhou Port
Highlight:

XH-M139 Digital Amplifier Module

,

Digital Amplifier Module 50Wx2

CA-3116P Digital Amplifier Module DC12-24V 50Wx2+100W AMP TPA3116D2
Product Overview

CA-3116P DC12-24V 50Wx2+100W 2.1 TPA3116D2 Sound Channel Digital Amplifier Audio Module delivers high-quality audio performance with efficient power amplification.

Key Features
  • Utilizes two high-quality TPA3116D2 digital amplifier chips
  • Excellent sound quality with high efficiency and amplifying power
  • 50W×2 + 100W 2.1 channel configuration (left/right channel and subwoofer)
  • High efficiency operation with minimal heat generation
  • Wide input voltage range: DC 12-24V
  • Easy user-adjustable volume control
  • Compatible with 4-8 ohm speakers
  • Simple setup - connect power supply and speakers to enjoy pure digital music
Technical Specifications
Parameter Specification
Supply Voltage DC 12-24V
Chip TPA3116 × 2
Channel Type 3 Channels (Left, Right, Subwoofer)
Output Power 50W × 2 + 100W
Output Match 4-8 ohm
Audio Output Terminals
Frequency Response Range 14-100KHz
SNR 100dB
Switching Frequency 1.2MHz

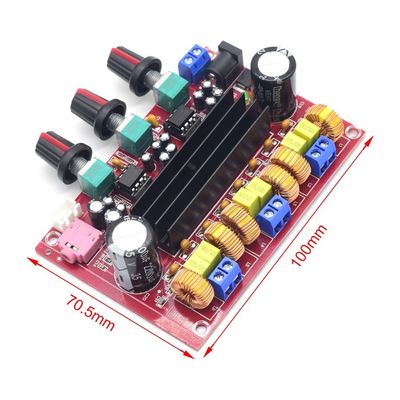

PCB Board Size 100 × 70 × 30mm / 3.94 × 2.75 × 1.18in (L × W × H)
Weight 113g / 3.98oz
Package Size 13.5 × 11 × 5cm / 5.31 × 4.33 × 1.97in (L × W × H)
Package Weight 178g / 6.3oz
Important Notice: This amplifier board must be powered by DC power (DC12-24V). For optimal performance, use a high-performance switch power supply. Do not use transformer-based power supplies.
