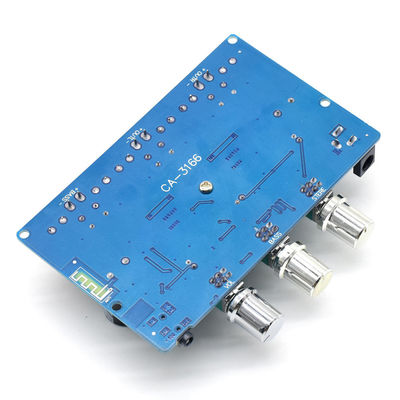

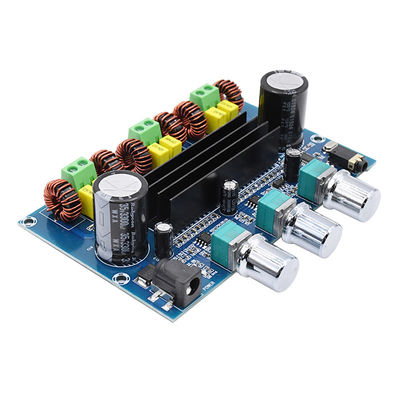

CA-3166B Digital Power Amplifier Board DC12-24V 50Wx2+100W with Bluetooth 5.0 Class D Audio Module

CA-3166B Digital Power Amplifier Board DC12-24V 50Wx2+100W with Bluetooth 5.0 Class D Audio Module
CA-3166B Digital Power Amplifier Board DC12-24V 50Wx2+100W with Bluetooth 5.0 Class D Audio Module CA-3166B Digital Power Amplifier Board DC12-24V 50Wx2+100W with Bluetooth 5.0 Class D Audio Module CA-3166B Digital Power Amplifier Board DC12-24V 50Wx2+100W with Bluetooth 5.0 Class D Audio Module CA-3166B Digital Power Amplifier Board DC12-24V 50Wx2+100W with Bluetooth 5.0 Class D Audio Module CA-3166B Digital Power Amplifier Board DC12-24V 50Wx2+100W with Bluetooth 5.0 Class D Audio Module

Large Image :  CA-3166B Digital Power Amplifier Board DC12-24V 50Wx2+100W with Bluetooth 5.0 Class D Audio Module

Product Details:
Place of Origin: Guangdong, China
Brand Name: creatall
Model Number: CA-3166B
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiable
Packaging Details: carton box
Delivery Time: 5-8 work days
Supply Ability: 10000 Piece/Pieces per Day
Contact Now

CA-3166B Digital Power Amplifier Board DC12-24V 50Wx2+100W with Bluetooth 5.0 Class D Audio Module

Description
Series: Amplifier Audio Module Product Name: CA-3166B Digital AMP
Description: Amplifier Audio Module Type: Audio Amplifiers
Item Type: Digital Amplifier Board Blue Tooth Version: 5.0
Chip Type: Class D Chip Model: TPA3116D2
Supply Voltage: DC12-24V Standby Current: App.60mA
Output Channel: 2.1 Channel Output Power: 100W+2x50W (4Ω)
Port: Shenzhen Port,guangzhou Port
Highlight:

Power Amplifier Board 50Wx2

,

Wireless Digital Power Amplifier Board

CA-3166B Digital Power Amplifier Board DC12-24V 50Wx2+100W AMP+BT
Wireless Digital Amplifier Audio Board

50Wx2 Channel high power Audio Version 5.0 digital amplifier board with Bluetooth connectivity.

  • Item Type: Digital Amplifier Board Bluetooth
  • Version: 5.0 Chip
  • Chip Type: Class D Chip
  • Model: TPA3116D2x2
  • Supply Voltage: DC12-24V
  • Standby Current: Approximately 60mA
  • Output Channel: 2.1 Channel
  • Output Power: 100W + 2x50W (4Ω)
  • Power Efficiency: Over 90%
  • Material: Plastic + Metal
  • Size: 116 x 45 x 30mm
  • Weight: 130g
  • Color: Blue
CA-3166B Digital Power Amplifier Board DC12-24V 50Wx2+100W with Bluetooth 5.0 Class D Audio Module 0
