Place of Origin:
China
Brand Name:
creatall
Model Number:
RP2040

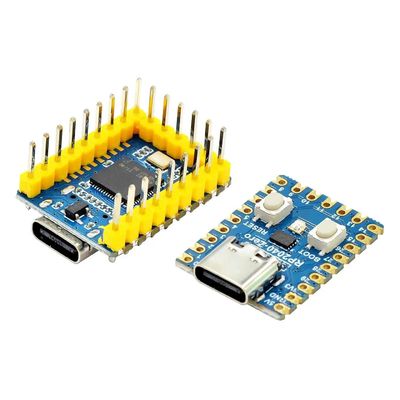

* RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
* Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
* 264KB of SRAM, and 2MB of on-board Flash memory
* USB-C connector, keeps it up to date, easier to use

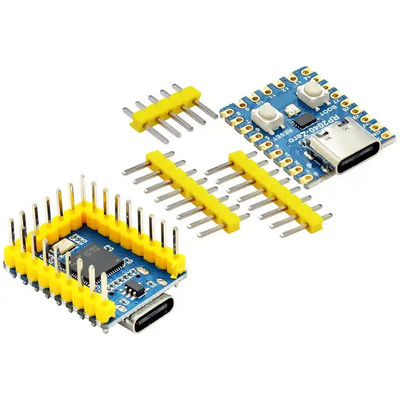

* Castellated module allows soldering direct to carrier boards
* USB 1.1 with device and host support
* Low-power sleep and dormant modes
* Drag-and-drop programming using mass storage over USB

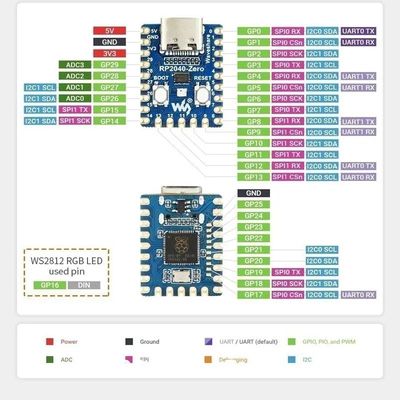

* 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
* 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
* Accurate clock and timer on-chip
* Temperature sensor
* Accelerated floating-point libraries on-chip
1.The RP2040 microcontroller chip is designed by Raspberry Pi
2.lt is powered by a dual-core ARM Cortex MO+ processor and runs at up to 133MHzflexible clock
3.It comes with 264KB of SRAM and 2MB of on-chip Flash
4.Real stamp hole design, can be directly welded into the self-designedbase plate
5.USB1.1 host and device support
6.Supports low power sleep and hibernation modes
7.Can be identified by USB as mass storage for support type download program
8.29 GPI0 pins of RP2040 (20 can be led by row pins, the rest can only beled by welding)
9.2 SPIs,2 12Cs,2 UART,4 12-bit ADC,16 controllable PWM channels
10.Accurate on-chip clock and timer
11.Temperature sensor
12.0n-chip accelerated floating point library
13.Eight programmable l/0 (PI0) state machines for custom peripheral support
