Place of Origin:
China
Brand Name:
Original
Certification:
CE
Model Number:
XK-W1099
Be able to control temperature and humidity at the same time.
Be able to connect with humidifier and dehumidifier equipment at the same time.
Be able to connect with refrigeration/ heating and humidifier/dehumidifier equipment at the same time.
Heating/Cooling function could be set separately for refrigeration and heating to protect temperature controller from violent change.Same as humidity Control.
Supporting Temp and Humidity Calibration
[Dual Display Window] Be able to display measured temperature/humidity and set temp/humidity at the same time
Specification:

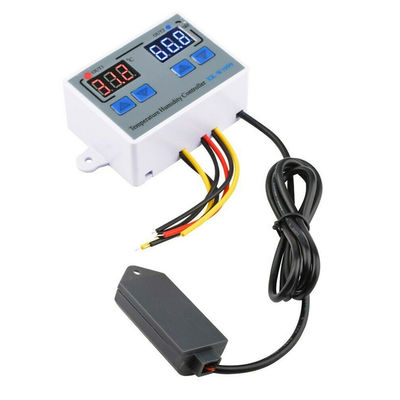

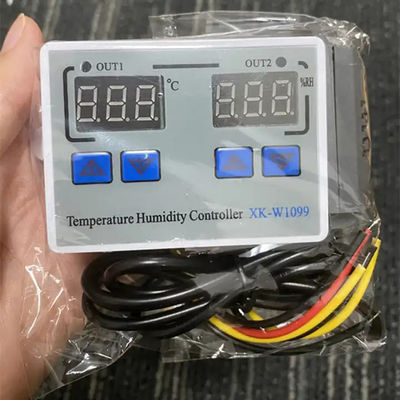

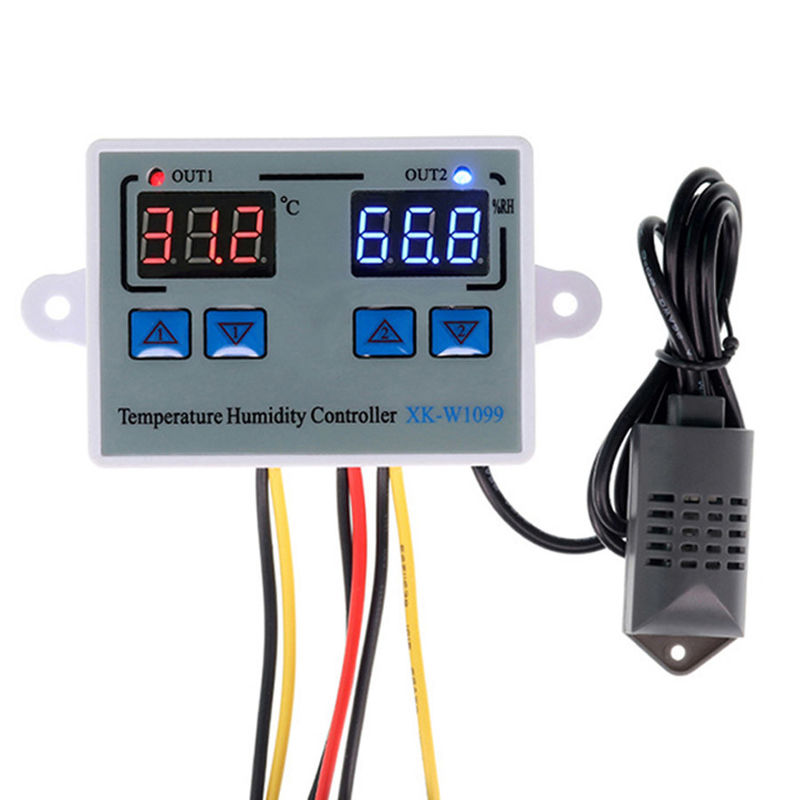

Model: XK-W1099
Input voltage: AC110~220V± 10%, DC24V, DC12V
Measuring temperature range: 0°C~+100° C
Measuring humidity range: 00%RH~+100%RH
Accuracy: ±1°, 0.1%RH
Relay output contact capacity: 10A Direct Output
Shell material: PC + ABS fireproof
Sensor length: 1m
-------------
Set startup temperature( hunidity):
Press the "up" button once to display the starting temperature(humidity). Long press the "up" button for about 3 seconds,The required temperature(humidity) can be set by the up and down keys
Set the stop temperature( hunidity):
Press the "down"button once to display the stop temperature(humidity). Long press the button for about 3 seconds and the stop temperature(humidity) number flashes. The required temperature(humidity) can be set by the up and down keys
temperature( hunidity) correction:
Press "up" and "down button at the same time.
How to reset the product:
Press "down 1" and "down 2" for 3 seconds.
Package includes:
1 X Temperature Humidity Controller
