Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board

Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board
Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board

Large Image :  Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board

Product Details:
Place of Origin: Guangdong, China
Brand Name: creatall
Model Number: Relay Module
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: $0.65/pieces 50-199 pieces
Contact Now

Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board

Description
Contact Load: Low Power Color: Red
Weight: 16g
Highlight:

12V 1 Channel Relay Module

,

Optocoupler Isolation Relay Module

,

Red PCB Board Relay Module

Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board 0
Products Description

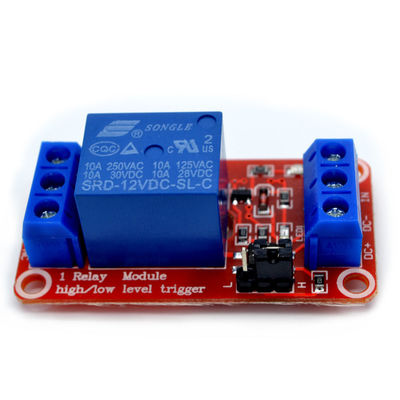

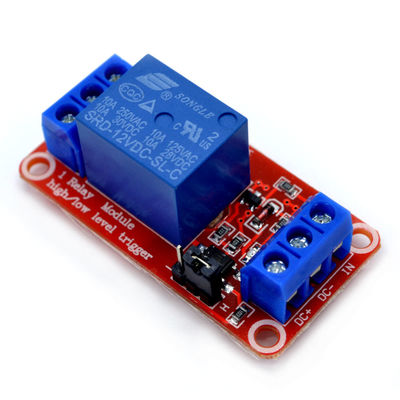

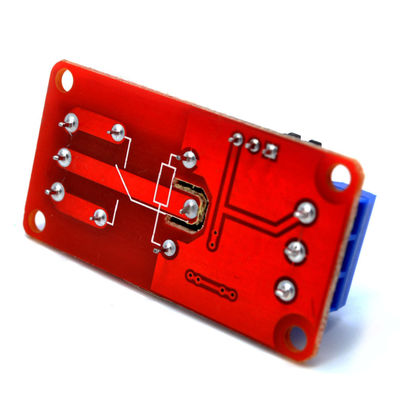

12V 1 Channel Relay Module High and Low level Trigger With Optocoupler Isolation 1 Way 12V Relay Red PCB Board
Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board 1
Specification: Size: 5cm*2.6cm*1.8cm(L*W*H) Pole Number: 1 Channel Operating Voltage: 12V DC+: positive power supply DC-: negative power supply Quiescent Current: 5mA Maximum Current: 80mA Trigger Voltage: 0V-4V(Low level) 4.5V-12V(High level) Trigger Current: 2-4mA Maximum Load: AC250V/10A, DC30V/10A Four Position Hole: 3.1mm(diameter)   Package Included: •  1 x 12V 1Channel Relay Module High and Low level trigger with Optocoupler Isolation
Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board 2
Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board 3
Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board 4
Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board 5
Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board 6
Contact us
Wechat：
zq13827494627
WhatsApp：
+86-13827494627
Skype：
alvacheng1
E-mail：
leo@creatall.com
Company Profile
Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board 7
Certificates & Production Processes
Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board 8
Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board 9
Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board 10
Packing & Delivery
1. Normal packaging.
2. Export carton.
3. Custom packing.
4. All orders are will be shipped within 3-25 days after customers confirmed payment.
Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board 11
Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board 12
Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board 13
Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board 14
Payment&Shipping
PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.
Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board 15
Customer Reviews
This is a part of good feedback from our customer, all is 5 star. It is prove that we are excellent supplier and also prove we own
high quality products and professional services.
Contact Load 12V 1 Channel Relay Module with Optocoupler Isolation on Red PCB Board 16
FAQ
Q: What is the minimum order quantity for your products? A: If you need a small order, please contact us Q: How long is your delivery time? A: The product will be sent within 3 days after payment is confirmed, and the delivery time is 3 to 6 days Q: Do you test or inspect all items before delivery? A: Yes, we tested and checked all items before shipment. Q. What is your warranty? A: 60 days after receiving the goods. Our products are 100% tested before being shipped. If the goods are defective, please notify us within 3 days after delivery. Any item must be returned as is to be eligible for a refund or payment. The buyer is responsible for all freight incurred. Q: How do I pay for the order? A: We accept wire transfer, Western Union, Pay Pal, moneygram, escrow (if you prefer other methods, please contact us)
