Place of Origin:
China
Brand Name:
Original
Certification:
CE
Model Number:

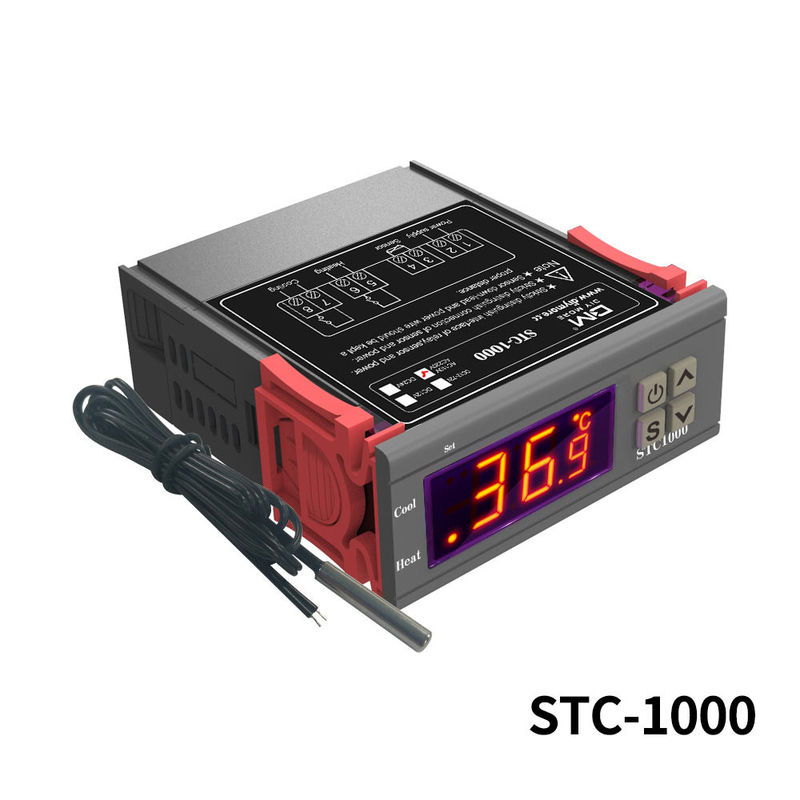

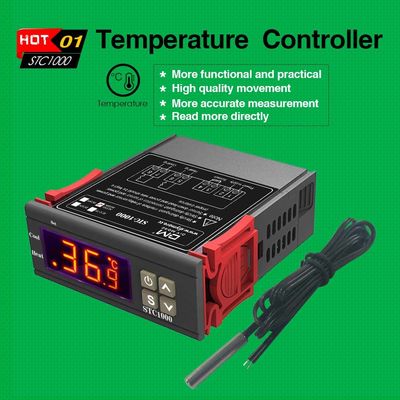

STC-1000
Description:
The minimum of aquarium temperature is one of the crucial factors that contributes to the health and safety of your fish. By utilizing the temperature controller, you can provide an environment With optimal temperature for your fish. This advanced temperature controller can measure and control temperature from -50 to 90 °C.
This device is also suitable for Laboratories use and other temperature-controlled systems.
Mini and light weight design
Large and clear LCD display
Wide Temperature Range (-50-90 Deg.C)
Dual heating and cooling function
Automatic over temperature alarm
Control temperature by setting the temperature set value and the different value
Temperature Calibration
Refrigerating control output delay protection

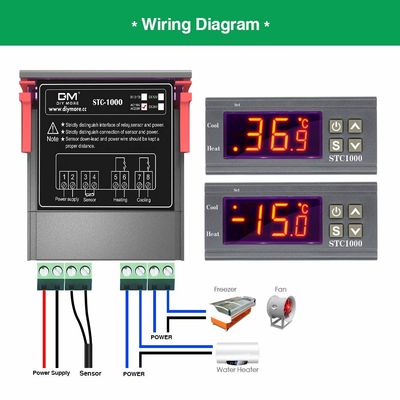

Wiring diagram for installation included
Specifications:
Color:Black
Applications:Aquarium, Terrarium, Vivarium, Paludarium, Chicken Incubator
Temperature Measuring Range: -50 - 90 Deg.C
Control temperature range: -50 - 90 Deg.C (adjustable)
Control temperature difference: 0.3 - 10 Deg.C (adjustable)
Resolution: 0.1 Deg.C
Accuracy: ± 1 Deg.C (-50 - 70 Deg.C)
Sensor: NTC sensor
Sensor error delay: 1 minute
Relay contact capacity (Heating): 10A (max) 250 V
Relay contact capacity (Cooling): 10 A (max) 250 V
Compressor delay protection time: 1 ~ 10 minutes (adjustable)
Operating Temperature: 0 - 60 Deg.C
Storage Temperature: -30 - 75 Deg.C
Operating Relative Humidity: 20 ~ 85 % (No condensation)
Alarm Output : Buzzer
Power Supply: DC 12, DC 12~72, DC 24, AC 110~ 220V ± 10%, 50 / 60 Hz
Power consumption: < 3 W
Cable length: 1 M
Item dimensions: approx. 84*69*34 MM
Net weight: 138g
