Place of Origin:
Guangdong, China
Brand Name:
creatall
Model Number:
26-65inch led strip kit

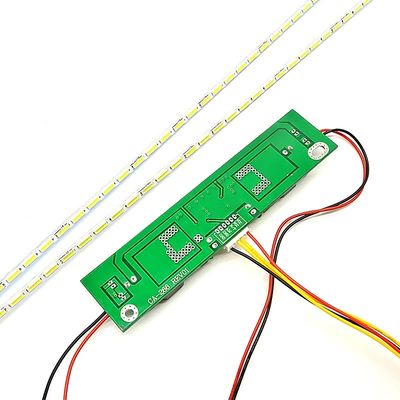

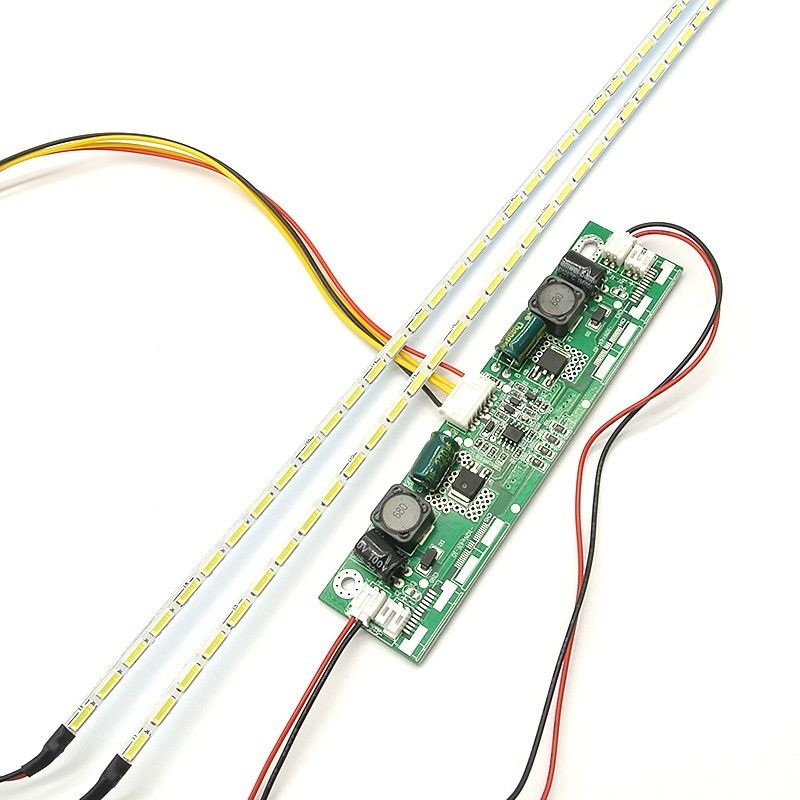

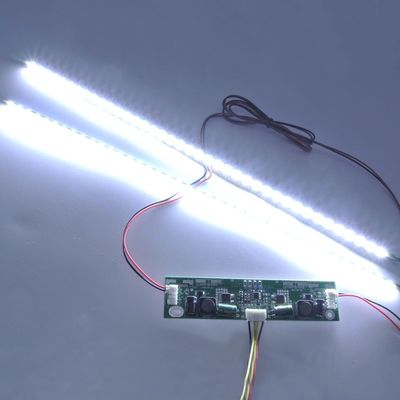

- Double- adhesive tape on the back , easy for install - Demension: 420mm x 3.8mm x 2mm (L x W x H) - Cable length: 90cm - Strips metal: Aluminum Plate , beneficial for radiating - Specifacition: 72V/ 300MA - This type LED strips Can Not be cut
VIN : voltage
ENA: on/off
DIM: ADJ adjust brightness
GND: connecting Ground
Hope this can help you ,this is DIY kit,we cannot replace you to do it all. Hope that you can understand it.
If you donot know any repair skill,you"d better not choose this kit.
led backlight strip:
26inch led strip=length:595mm width:3mm
32inch led strip=length:355mm width:3.8mm
37inch led strip=length:420mm width:3.8mm
39inch led strip=length:435mm width:3.8mm
39.5inch led strip=length:445mm width:3.8mm
40inch led strip=length:450mm width:3.8mm
41.6inch led strip=length:465mm width:3.8mm
42inch led strip=length:475mm width:3.8mm
46inch led strip=length:520mm width:3.8mm
48inch led strip=length:530mm width:3.8mm
49inch led strip=length:540mm width:3.8mm
49.5inch led strip=length:545mm width:3.8mm
50inch led strip=length:555mm width:3.8mm
52inch led strip=length:595mm width:3.8mm
55inch led strip=length:610mm width:3.8mm
58inch led strip=length:645mm width:3.8mm
60inch led strip=length:670mm width:3.8mm
65inch led strip=length:720mm width:3.8mm
what sizes do you need?
