3.3V 5V 12V 24V Control Relay Module 2 Channel Dual Optocoupler

3.3V 5V 12V 24V Control Relay Module 2 Channel Dual Optocoupler

24V Control Relay Module

3.3V Control Relay Module

2 channel relay module Dual Optocoupler

Place of Origin:

Guangdong, China

Brand Name:

Creatall

Model Number:

2 Channel Relay Module

Contact Us
Request A Quote
3.3V 5V 12V 24V Control Relay Module 2 Channel Dual Optocoupler 3.3V 5V 12V 24V Control Relay Module 2 Channel Dual Optocoupler 3.3V 5V 12V 24V Control Relay Module 2 Channel Dual Optocoupler 3.3V 5V 12V 24V Control Relay Module 2 Channel Dual Optocoupler
Product Details
Type:
Dc Dc Converter
Brand:
Creatall
Shipment Terms:
DHL
MOQ:
Sample
Warranty:
3 Months
Condition:
100% Original
Package Type:
Electrostatic Bag
Lead Time:
1-3 Days
Quality:
High-quality
Dadecode:
Newest
Payment:
Accept Trade Assurance
Port:
Shenzhen Port. Guangzhou Port
Name:
Control Relay Module
Theory:
Voltage Relay
Usage:
PROTECTIVE
Size:
Miniature
Control Mode:
Manual/Automatic
Working Temperature:
-20℃~+60℃
Payment & Shipping Terms
Minimum Order Quantity
negotiable
Price
negotiable
Delivery Time
5-8 work days
Supply Ability
1000 Piece/Pieces per Day
RELATED PRODUCTS
Good price 53x18x18.5mm 1 Channel 12v Relay Module With Optocoupler Low Level Trigger Expansion Board online

53x18x18.5mm 1 Channel 12v Relay Module With Optocoupler Low Level Trigger Expansion Board

Get Best Price
Good price PCB Board Control Relay Module 1 Way 12v Single Channel Relay online

PCB Board Control Relay Module 1 Way 12v Single Channel Relay

Get Best Price
Good price DC 12V Timer Delay Relay Shield Module 0~10S Car Oscillator Timer Switch online

DC 12V Timer Delay Relay Shield Module 0~10S Car Oscillator Timer Switch

Get Best Price
Good price 3.3V 5V 12V 24V Control Relay Module 2 Channel Dual Optocoupler online

3.3V 5V 12V 24V Control Relay Module 2 Channel Dual Optocoupler

Get Best Price
Contact Us
+86-136827494627
sales@creatall.com
86-755-85270755
Contact Now
Product Description

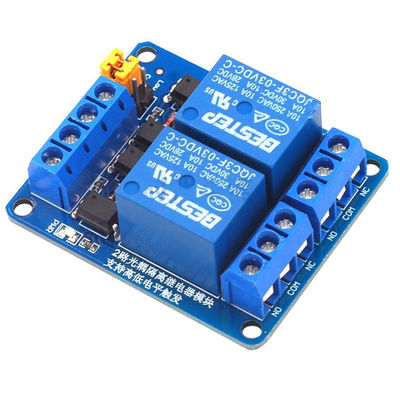

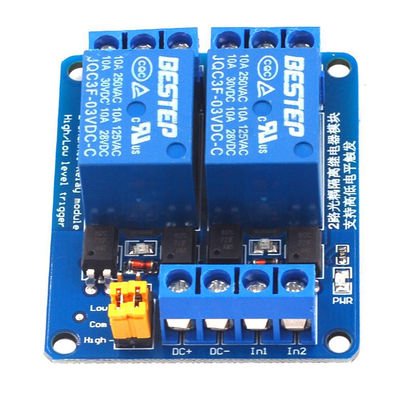

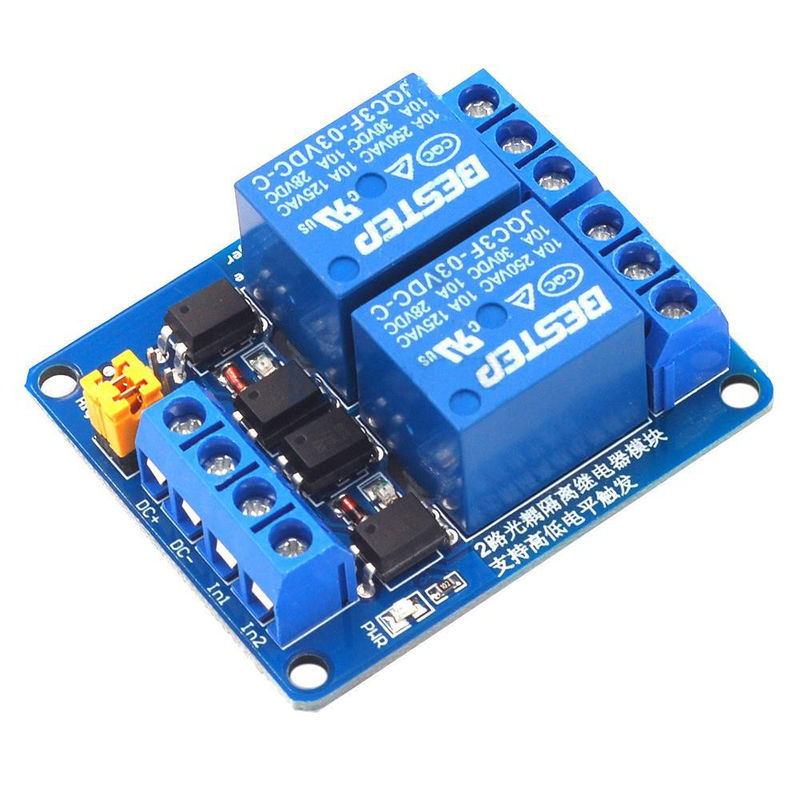

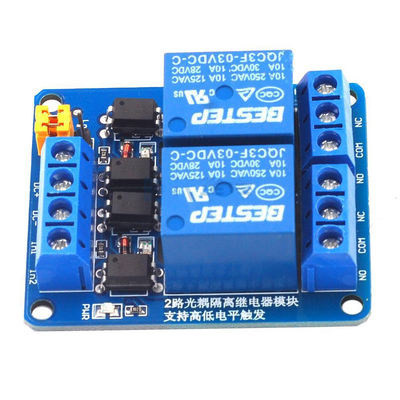

3.3V 5V 12V 24V 2 Channel Relay Module High and low Level Trigger Dual Optocoupler Isolation Relay Module power supply module

Product Description:

  • The module adopts genuine quality relay, the maximum load of the normally open interface: AC 250V/10A, DC 30V/10A;
  • Using double optocoupler isolation, strong drive capability, stable performance; trigger current 5mA;
  •  Module operating voltage is 5V;
  •  Each channel of the module can be triggered by jumper high or low level;
  •  Fault-tolerant design, even if the control line is broken, the relay will not move;
  •  Power indicator (green), 2 relay status indicators (red)
  •  User-friendly interface design, all interfaces can be directly connected through the wiring terminals, very convenient

Module interface:

  •  DC+: Connect to the positive pole of the power supply (voltage is relay 5V)
  •  DC-: Connect to the negative pole of the power supply
  •  IN1-IN2: According to the setting of each channel, the corresponding relay can be controlled by high or low level.



Relay output:

  • NO1-NO2: Normal open interface of the relay. Before the relay is closed, it is left unconnected. After picking up, it is shorted to COM.
  • COM1-COM2: Relay Common Interface
  • NC1-NC2: Normally closed relay interface. Before the relay is closed, it is short-circuited with COM.


High and low level trigger selection:

  • S1-S2 is the high and low level trigger selection for Relay 1 - 2;
  • When com is shorted to low, the corresponding relay is a low level trigger. When com is shorted to high, it is a high level trigger.



Tags：
