5V 1 Channel Relay Module For PIC AVR DSP ARM power supply module

5V 1 Channel Relay Module

1 Channel Relay Module PIC

5v single channel relay module ARM

Place of Origin:

Guangdong, China

Model Number:

1 Channel Relay Module

Request A Quote

Product Details

Type:

Dc Dc Converter

Brand:

Creatall

Port:

Shenzhen Port,guangzhou Port

Name:

Control Relay Module

Theory:

Voltage Relay

Usage:

PROTECTIVE

Size:

Miniature

Control Mode:

Manual/Automatic

Working Temperature:

-20℃~+60℃

Payment & Shipping Terms

Minimum Order Quantity

negotiable

Price

negotiable

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Day

53x18x18.5mm 1 Channel 12v Relay Module With Optocoupler Low Level Trigger Expansion Board

Get Best Price

PCB Board Control Relay Module 1 Way 12v Single Channel Relay

Get Best Price

DC 12V Timer Delay Relay Shield Module 0~10S Car Oscillator Timer Switch

Get Best Price

3.3V 5V 12V 24V Control Relay Module 2 Channel Dual Optocoupler

Get Best Price

+86-136827494627

sales@creatall.com

86-755-85270755

Contact Now

Product Description

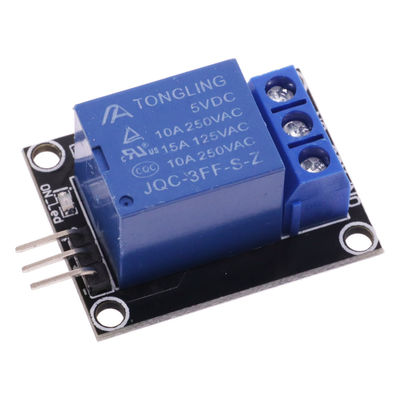

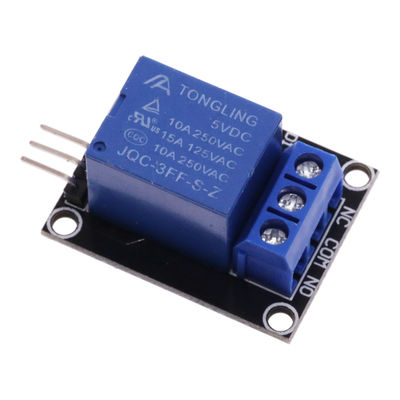

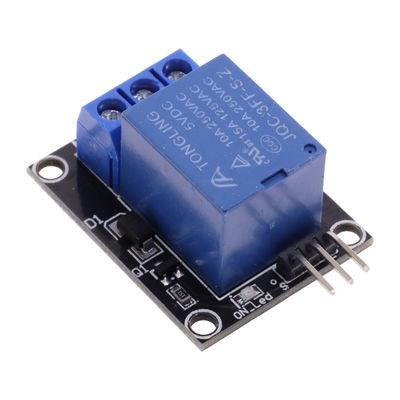

5V One 1 Channel Relay Module Board Shield For PIC AVR DSP ARM for arduino Relay power supply module

Product Description:

The relay coil drive voltage is 5V, and the input control level can also be within 5V.
Output drive capacity: 250VAC-10A, 125VAC-10A, 30VDC-10A, 28V DC-10A.
Easy to use, each output group has a simple 3-wire structure, and 6 output terminals are reserved.
The input is directly connected to the MCU IO port or digital circuit, and the input high-level relay The device is closed, and the input low level relay is released.
Working voltage 5V, pull-in current about 70mA per circuit, with relay status indication light.
Full chip components. Reasonable drive circuit design, using 8050 transistor to drive the relay Electrical action.
There are fixed screw holes for easy installation,

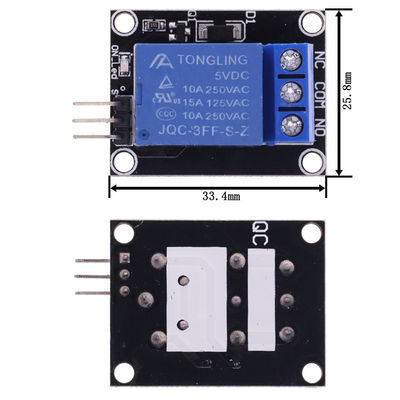

module size: 25.8*33.4*16.7mm. Test Instruction The input and output of the module are electrically insulated.
After the correct voltage is supplied, you only need to Connecting a high level (such as a short circuit with VCC) to the input pin can make the relay pull in,If not connected or connected to low level (such as short-circuit with GND), the relay will not operate.
