Dual Channel Digital Amplifier Audio Module
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | Creatall |
| Model Number: | TPA3116 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable |
| Delivery Time: | 5-8 work days |
| Supply Ability: | 1000 Piece/Pieces per Day |
|
Detail Information |
|||
| Features: | Amplifier Audio Module | Description: | Amplifier Audio Module |
|---|---|---|---|
| Application: | Amplifier Audio Module | Technology: | Amplifier Audio Module |
| Mounting Type: | Direct Mounting | Port: | Shenzhen Port,guangzhou Port |
| High Light: | Dual Channel Amplifier Audio Module,CSR8635 Amplifier Audio Module |
||
Product Description
Dual Channel TPA3116 CSR8635 4.0 BT Digital Audio Amplifier module 100w*2
Product Description:
- Chip type:TDA3116
- Transmission distance:up to 10 meters (no interference blocking)
- Supply voltage:DC12-24V
- Supply current:greater than 3A
- Output power:100W * 2
- Notice:Dual Channel Output 4Ohm 50W*2
- Power interface:2.1 DC socket
- Applicable speaker impedance:4-8ohm
- Single Channel Output:4Ohm 80W ; 3Ohm 110W; 2Ohm 100W

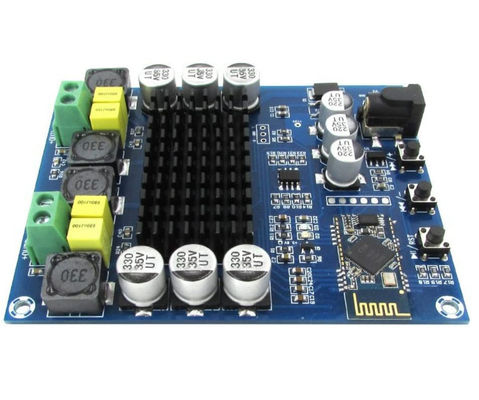

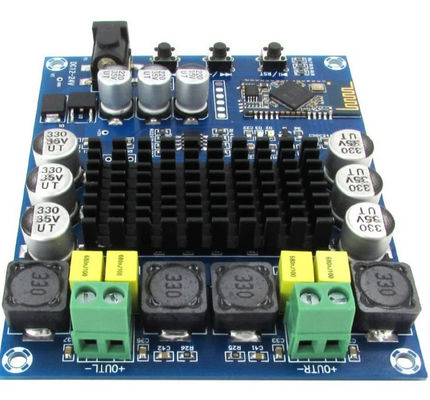

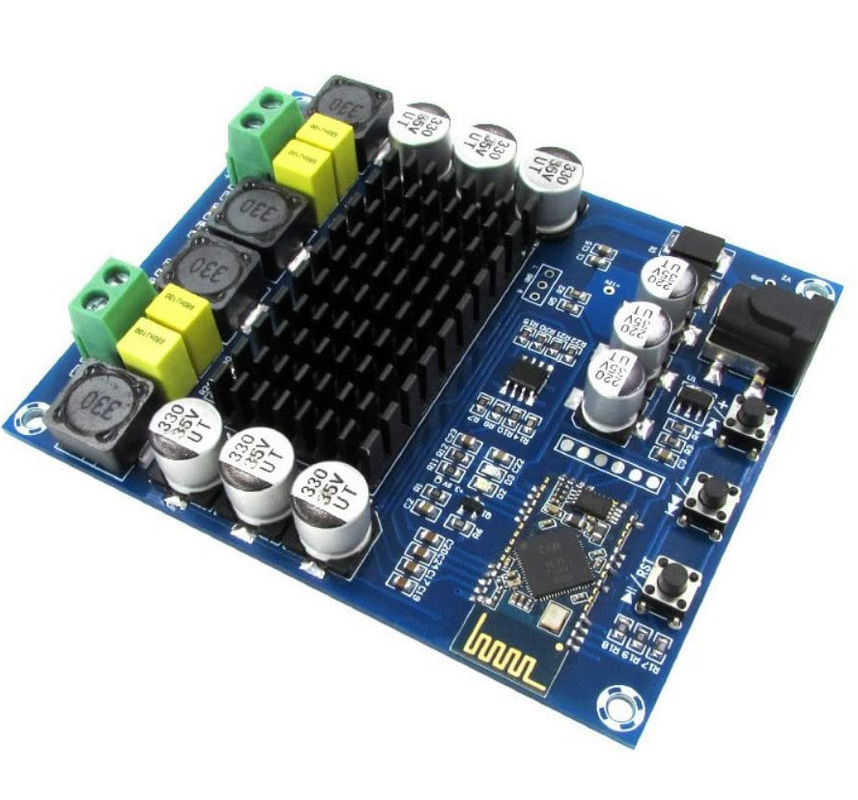

Main Board: tpa3116 amplifier board
Function:
-
Using the digital power amplifier chip TPA3116D2 college D class operation, integrated CSR8635.4 version of the BT module.
-
Power amplifier chip with more than 90% of the power efficiency and low idle loss characteristics.
-
High-level modulation system configuration, advanced level reduces the number of components, integrated self-protection circuit,including overvoltage, undervoltage, overheating, DC detection and short circuit protection, heat-resistant package.BT transmission of about 10 meters,But only if there is without any hindrance,but the use of the environment do not,transmission distance, if the DIY speaker, it is best not to use the BT signal shielding material
-
Output power:100W*2;BT 4.0,Low energy consumption, high transmission rate,compatible for smart phones and other electronic
-
with BT devices that support BT: HFP V1.6,HSP V 1.2, AVRCP V1.4, DI V1.3
