Name: CCM2 10-30V PWM Motor Speed Controller Reversible Switch 120W Adjustable
Brand: CCM2 10-30V PWM Motor Speed Controller Reversible Switch 120W Adjustable
SKU: Adjustable Motor Speed Controller
Rating: 4.6 (102 reviews)

Home > products > PWM Motor Speed Controller >

CCM2 10-30V PWM Motor Speed Controller Reversible Switch 120W Adjustable

30V PWM Motor Speed Controller

CCM2 PWM Motor Speed Controller

Place of Origin:

Guangdong, China

Model Number:

Adjustable Motor Speed Controller

Request A Quote

CCM2 10-30V PWM Motor Speed Controller Reversible Switch 120W Adjustable

Product Details

Type:

Dc Dc Converter

Brand:

Creatall

Port:

Shenzhen Port,guangzhou Port

[driving Voltage] DC::

7-12V

[Working Current]:

≤1.2A

Display:

LED Digital Display

Product Name:

PWM Motor Speed Controller

Protection:

Over-current, Over-voltage, Short-circuit Protection

Storage Temperature:

-40℃-85℃

Payment & Shipping Terms

Minimum Order Quantity

negotiable

Price

negotiable

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Day

MP1584 DC-DC Step Down Power Module MP1584EN 3A Adjustable

Get Best Price

AC 220V PWM Motor Speed Controller 2000W Ac Voltage Regulator

Get Best Price

2000W 4000W Thyristor Governor Temperature Control Module AC 220V High Power

Get Best Price

35V 5A 90W PWM Motor Speed Controller Adjust Board Switch For LED Dimming

Get Best Price

+86-136827494627

sales@creatall.com

86-755-85270755

Contact Now

Product Description

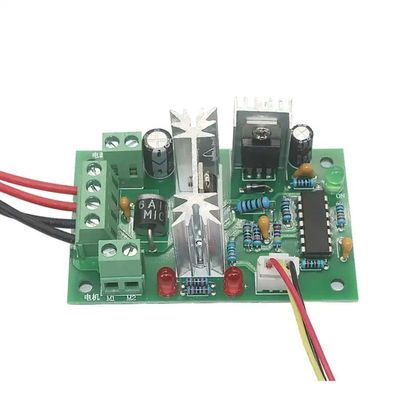

CCM2 10-30V DC Motor Speed Controller Reversible Switch 120W PWM Adjustable Motor Speed Regulator

Product Description:

Features:

Using PWM speed control technology, with high conversion efficiency, wide speed range, and stable performance.
Adopting imported semiconductor chips, and had tested the voltage, current, function etc. So the circuit is stable and reliable.
Overload short circuit protection and the current no more than 30 seconds.

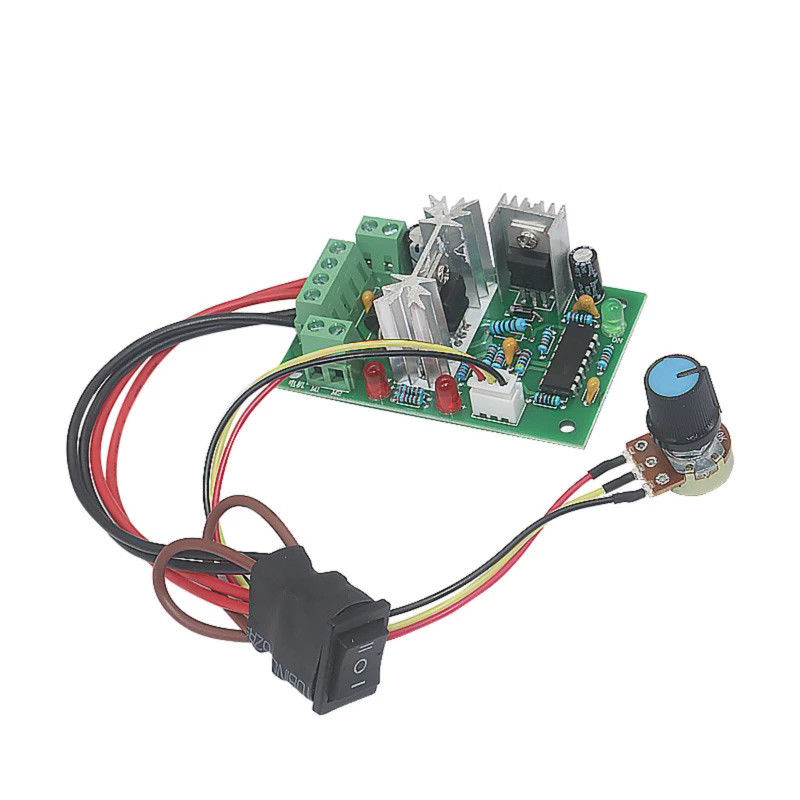

Potentiometer is used to speed up the positive and negative switch for forward, reverse, and stop.

Specifications:

The resistance value of a resistor: B10K
Cable length: approx. 20cm/7.87''
resistor mounting hole: 8mm
Voltage: DC 10V-30V( wide range)
Working voltage: 12v*3A=36W/24V*3A=72W Maximum up to 120W
Rated current: 3A(Maximum continuous output current)
Maximum current: 4A
Modulation range: 5%-95%
PWM frequency: 500HZ
Module size: approx.74*47*28mm/2.91*1.85*1.10''
Net weight: approx. 66g
Gross weight: approx. 70g

Note:

DC motor speed control input is DC, can not directly connect AC current (such as the 220V AC) otherwise it will burn.
The positive and negative poles of the DC power supply can not be reversed, Otherwise the governor will damage.
Motor can be divided into positive and negative, when the direction of operation and expectations are inconsistent, you can change the direction of the alignment.
The potentiometer knob can change the output duty cycle of the governor, thus changing the speed of the motor.
Please allow 1-3mm differs due to manual measurement.
