2.1 Multi Function Power Amplifier Board DC Voltage 5V 20W 3A

2.1 Multi Function Power Amplifier Board DC Voltage 5V 20W 3A

Multi Function Power Amplifier Board

Power Amplifier Board 5V

Place of Origin:

Guangdong, China

Brand Name:

Creatall

Model Number:

ca-5v20w

Contact Us
Request A Quote
2.1 Multi Function Power Amplifier Board DC Voltage 5V 20W 3A 2.1 Multi Function Power Amplifier Board DC Voltage 5V 20W 3A
Product Details
Frequency:
Amplifier Audio Board
Mounting Type:
Direct Mounting
Warranty:
3 Months
Condition:
100% Original
Package Type:
Electrostatic Bag
Lead Time:
1-3 Days
Quality:
High-quality
Payment:
Accept Trade Assurance
Dadecode:
Newest
Port:
Shenzhen Port,guangzhou Port
Payment & Shipping Terms
Minimum Order Quantity
negotiable
Price
negotiable
Delivery Time
5-8 work days
Supply Ability
1000 Piece/Pieces per Day
RELATED PRODUCTS
Good price 2.1ch TPA3116D2 Bluetooth Amp Board 2*50W+100W 4~8ohm DC12~24V online Video

2.1ch TPA3116D2 Bluetooth Amp Board 2*50W+100W 4~8ohm DC12~24V

Get Best Price
Good price TPA3116 Subwoofer Amplifier Audio Board 2.1 HiFi Amplificador USB Amp Bluetooth 5.0 online Video

TPA3116 Subwoofer Amplifier Audio Board 2.1 HiFi Amplificador USB Amp Bluetooth 5.0

Get Best Price
Good price TPA3116D2 Wireless Digital Power Amplifier Board Double Channel 2*50W Output Power online Video

TPA3116D2 Wireless Digital Power Amplifier Board Double Channel 2*50W Output Power

Get Best Price
Good price TDA7498 Digital Amplifier Board DC14-34V 2*100W Overheat Protection High Efficiency online

TDA7498 Digital Amplifier Board DC14-34V 2*100W Overheat Protection High Efficiency

Get Best Price
Contact Us
+86-136827494627
sales@creatall.com
86-755-85270755
Contact Now
Product Description

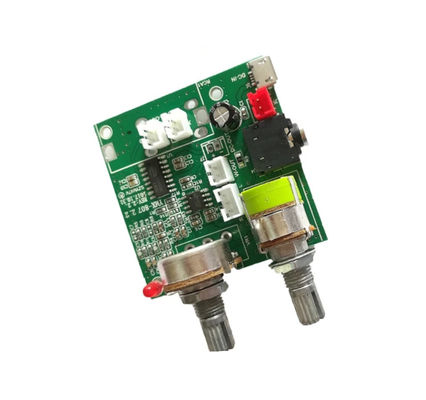

2.1 Multi Function Power Amplifier Board DC Voltage 5V 20W 3A



Power requirements:

  • DC Voltage 5V (4.8-5v), current more than 3A;

  • secondly, mobile power should use the original genuine manufacturers, and ensure the discharge capacity to meet the standard (because this kind of product is lithium battery through the way of boosting), Shanzhai not only can't keep up with the current, but also can't keep up with the constant current.

  • In particular, its instantaneous current can't keep up with it (it can't drive or distort the sound) and it's easy to damage the board. Pay attention!!

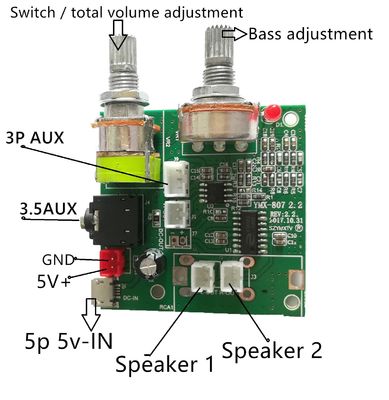

Power supply mode and horn selection:



  • A. 5V / 3A power is inserted into the red power socket;

  • Horn requirements:

  • Left and right channel sub box horn: 4 Ω / 5W full frequency horn.

  • Bass speaker: choose 4 (Ω) 10W-15W bass speaker. Never use a 6-ohm or 8-ohm bass speaker;

  • B. if the power is supplied from the USB socket of the motherboard (5v3a), the USB here can't be charged, please note;

  • Horn requirements:

  • Left and right channel speakers: 4 Ω / 3W full frequency speakers.

  • Bass speaker: choose 4 (Ω) 5W bass speaker. Never use a 6-euro or 8-euro Bass speaker;

  • Audio source: MP3, MP4, computer, PC, mobile phone
