Name: XL4015E 5A 75W Step Down Power Module DC DC Adjustable With Voltage Display
Brand: Creatall
SKU: XL4015E adjustable Buck module
Rating: 5 (176 reviews)

Home > products > Power Supply Module >

XL4015E 5A 75W Step Down Power Module DC DC Adjustable With Voltage Display

75W Step Down Power Module

XL4015E Step Down Power Module

Dc Step Down Module Voltage Display

Place of Origin:

Guangdong, China

Brand Name:

Creatall

Model Number:

XL4015E adjustable Buck module

Request A Quote

XL4015E 5A 75W Step Down Power Module DC DC Adjustable With Voltage Display

Product Details

Type:

Dc Dc Converter

Brand:

Creatall

Size:

66*39*18mm

Payment & Shipping Terms

Minimum Order Quantity

negotiable

Price

negotiable

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Day

LM2596S LED Voltmeter Power Supply Module With Digital Display

Get Best Price

4-38V Dc Step Down Power Supply XL4016E1 module Voltage Regulator

Get Best Price

CA-888 LCD TV Power Module Universal Window Control Power Supply Module

Get Best Price

MP1584 MP1584EN DC DC Module step down 3A adjustable 1.5MHz

Get Best Price

+86-136827494627

sales@creatall.com

86-755-85270755

Contact Now

Product Description

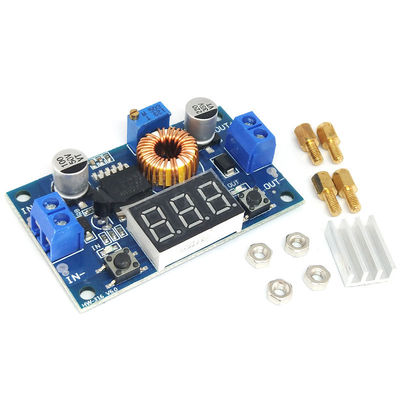

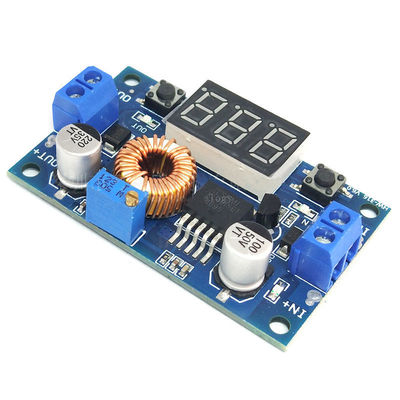

XL4015E 5A 75W with voltage display DC-DC adjustable Buck step-down power supply module

Product Description:

With power indicator

with a voltmeter display and the voltmeter can be self-calibration. Using a more advanced voltage microprocessor, voltmeter
error ± 0.05V, range 0 ~ 40V. (Note: To ensure the accuracy of the voltmeter, please ensure that the input voltage above 4.5V)
Touch the button to switch the measurement input or output voltage, and the indicator shows which circuit voltage is being meas
ured, and save the settings, even if the power is turned on again.
The voltmeter can be turned off, when you do not need to touch the left button can be easily achieved.
With terminal blocks, no soldering iron can also be used easily, and retain the wire connection point.
Input voltage 4.0 ~ 38V. (The input voltage must be higher than the output voltage 1.5v above)
Adjustable
output voltage range 1.25V ~ 36V continuously adjustable. (The input voltage must be 1.5V higher than the output
voltage)
Output current up to 5A, it is recommended to use within 4.5A.
Output power up to 75W, more than 50W Please strengthen the chip cooling. (That is, must add a small radiator)
high conversion efficiency, up to 96% (efficiency and input, output voltage, current, pressure related)
Operating frequency: 180KHZ
Load regulation rate S (I) ≤ 0.8%, voltage regulation rate S (u) ≤ 0.8%
with overheating protection and short circuit protection (but the short circuit in case of accident, try not to short circuit)
Board size: 6.64 * 3.89CM
Input voltage:4.0 ~ 38V
output voltage range:1.25V ~ 36V
Output current:up to 5A, it is recommended to use within 4.5A.
Operating frequency:180KHZ
