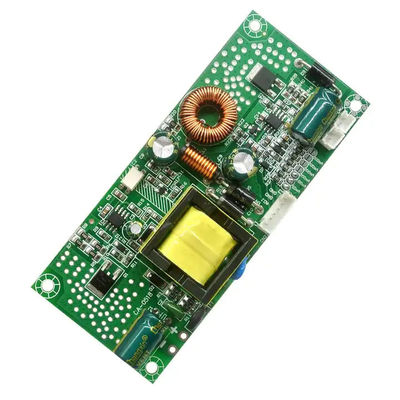

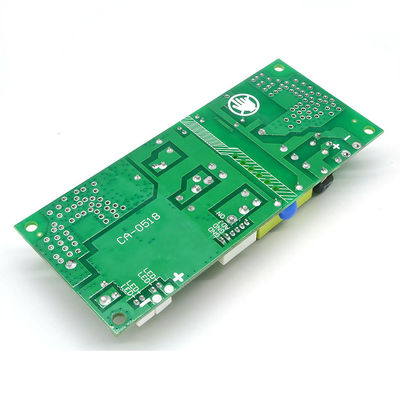

CA-0518 19-60 Inch LED Universal Backlight Constant Current Board 220V Or 110V AC Input 300-240V DC Applicable
Product Description:
product name: led backligth constant current board
prodcut model: CA-0518
input voltage: 300-450V DC
output voltage: 36-180V DC
power: 45W
apply: universal 19-60inch
product size: 115*50mm
product weigth: 355g
Interface specification
ON Connects to the signal control pin(Voltage range about 3.3V)
ADJ Connects to the brightness control foot(Voltage range 0-3.3V)
ADJ, brightness adjustment, if the default value is 0V, the output voltage to the light bar is the highest; When the voltage of the ADJ pin increases, the voltage output to the light bar decreases, and the light bar becomes dimmer. ADJ is to use voltage to control the output voltage to achieve the brightness control bar. All constant flow plate and high pressure plate ADJ. are the same
